DIN Globe Valve
Quantity
Inquiry

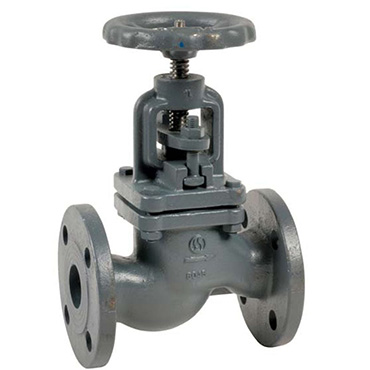

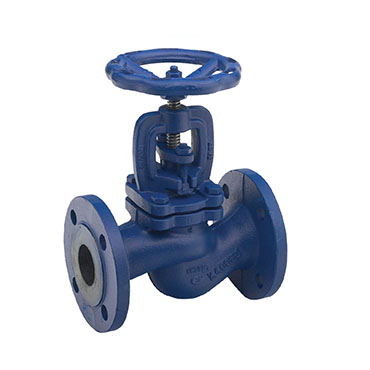

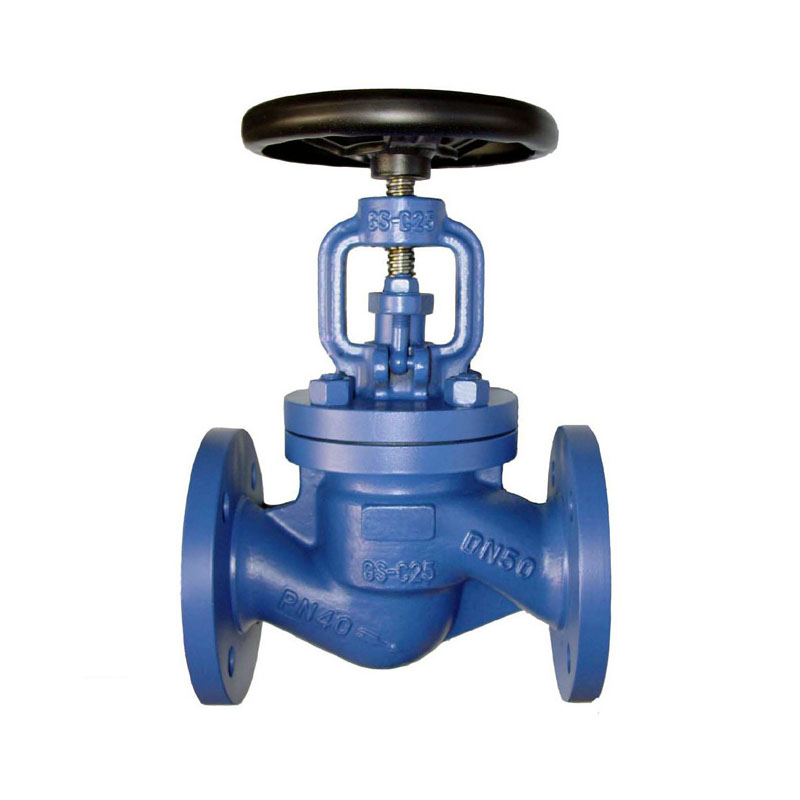

DIN Globe Valve

DIN globe valve can be used to control the flow of various types of fluid, such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive medium.
The opening and closing part of Globe valve is a plug disc, and the valve flap of globe valve moves along the center line of the valve seat in a straight line.

  • DIN Globe Valve
  • DIN Globe Valve
  • DIN Globe Valve Range:

Production Size: 1/2"~10".DN15~DN250.

Pressure: PN16.

  • DIN Globe Valve Standard:

Design Standard: DIN 3356.

Face to Face: DIN 3202 F1.

Flange Standard: DIN 2533 PN16.

Testing Standard: ISO 5208.

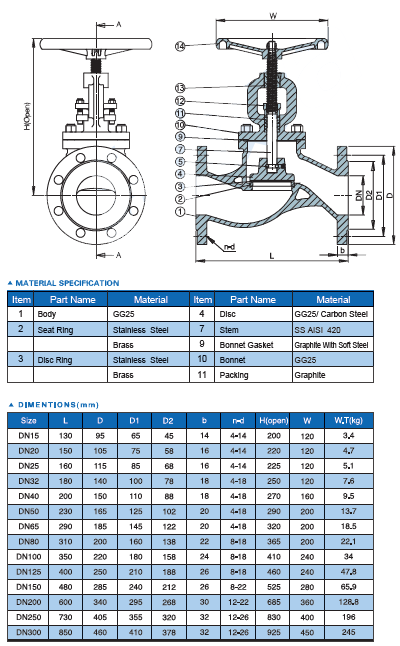

  • DIN Globe Valve Material of Part:

Body: GS-CS25.

Bonnet: GS-CS25.

Stem: 2Cr13, SS304, SS316, carbon steel.

Stem Nut: brass, ductile iron.

Disc: GG25.

Seat: ASTM B62 C83600, 2Cr13, Brass.

Hand Wheel: ASTM A536 65-45-12.

Packing: Graphite.

  • DIN Globe Valve
