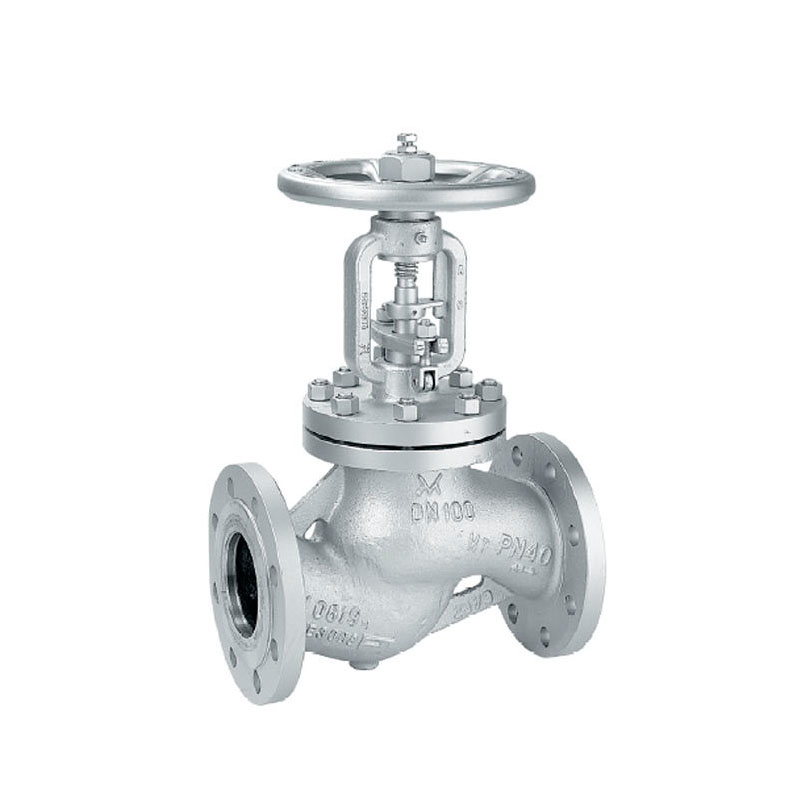

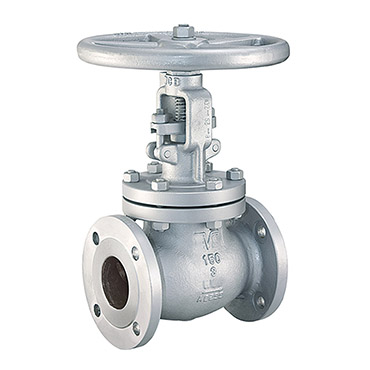

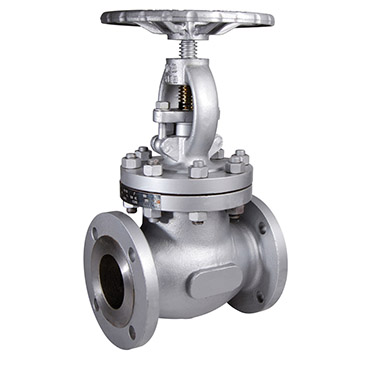

ANSI Stainless Steel Globe Valve
ANSI stainless steel globe valve can be used to control the flow of various types of fluid, such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive medium.
The opening and closing part of Globe valve is a plug disc, and the valve flap of globe valve moves along the center line of the valve seat in a straight line.
- ANSI Stainless Steel Globe Valve Range:
Production Size: 1/2"~24".DN15~DN600.
Pressure: 150LB, 300LB, 600LB, 900LB.
- ANSI Stainless Steel Globe Valve Standard:
Design Standard: API600,API6D,BS1873.
Face to Face: ASME B16.34.
Flange Standard: ASME B16.5.
Testing Standard: API 598.

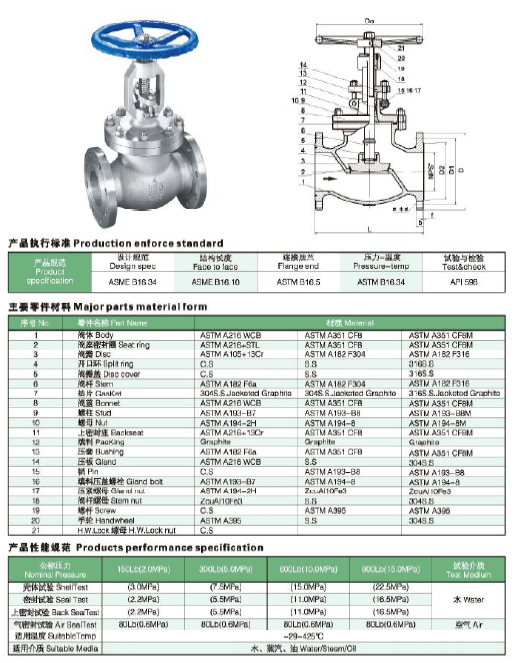

- ANSI Stainless Steel Globe Valve Material of Parts:
Body: CF3, CF3M, CF8, CF8M.
Bonnet: CF3, CF3M, CF8, CF8M.
Stem: 2Cr13, SS304, SS316, carbon steel.
Stem Nut: brass, ductile iron.
Disc: CF3, CF3M, CF8, CF8M.
Seat: CF3, CF3M, CF8, CF8M.
Hand Wheel: ASTM A536 65-45-12.
Bonnet Nut: ASTM A194 2H.
Bonnet Bolt: ASTM A193 B7.
Packing: Graphite.
