ANSI Globe Valve
Quantity
Inquiry

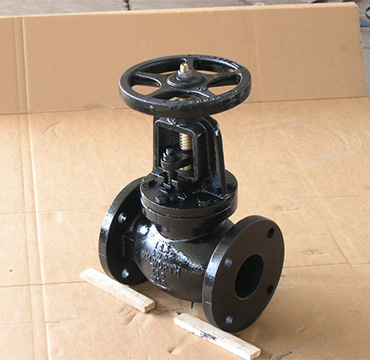

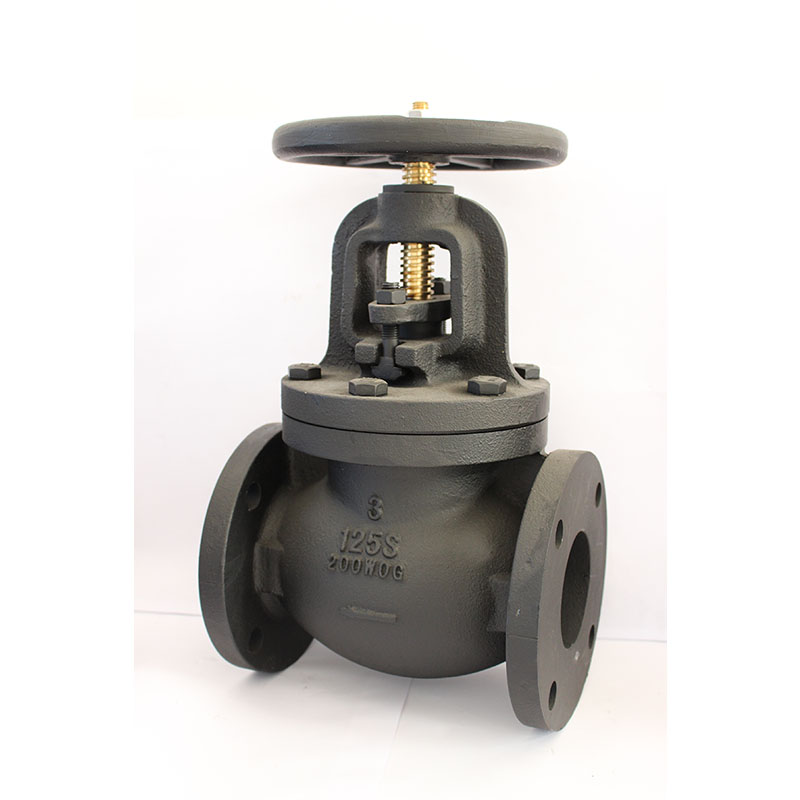

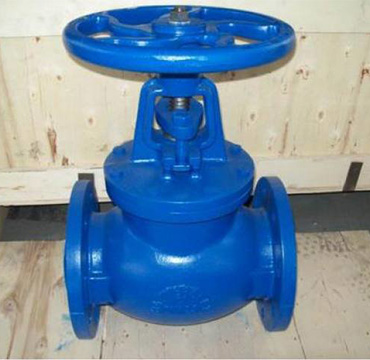

ANSI Globe Valve

ANSI globe valve can be used to control the flow of various types of fluid, such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive medium.
The opening and closing part of Globe valve is a plug disc, and the valve flap of globe valve moves along the center line of the valve seat in a straight line.

  • ANSI Globe Valve
  • ANSI Globe Valve
  • ANSI Globe Valve Range:

Production Size: 1/2"~10".DN15~DN250.

Pressure: 150LB.

  • ANSI Globe Valve Standard:

Design Standard: MSS SP-70.

Face to Face: ANSI B16.10.

Flange Standard: ANSI B16.1.

Testing Standard: API 598.

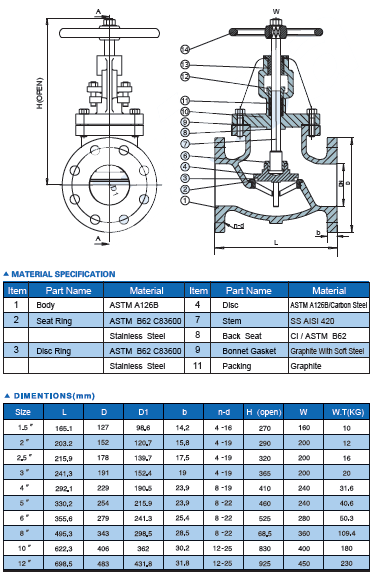

  • ANSI Globe Valve Material of Parts:

Body: ASTM A126B.

Bonnet: ASTM A126B.

Stem: 2Cr13, SS304, SS316, carbon steel.

Stem Nut: brass, ductile iron.

Disc: ASTM A126B.

Seat: ASTM B62 C83600, 2Cr13, Brass.

Hand Wheel: ASTM A536 65-45-12.

Packing: Graphite.

  • ANSI Globe Valve
