ANSI Cast Steel Globe Valve
Quantity
Inquiry

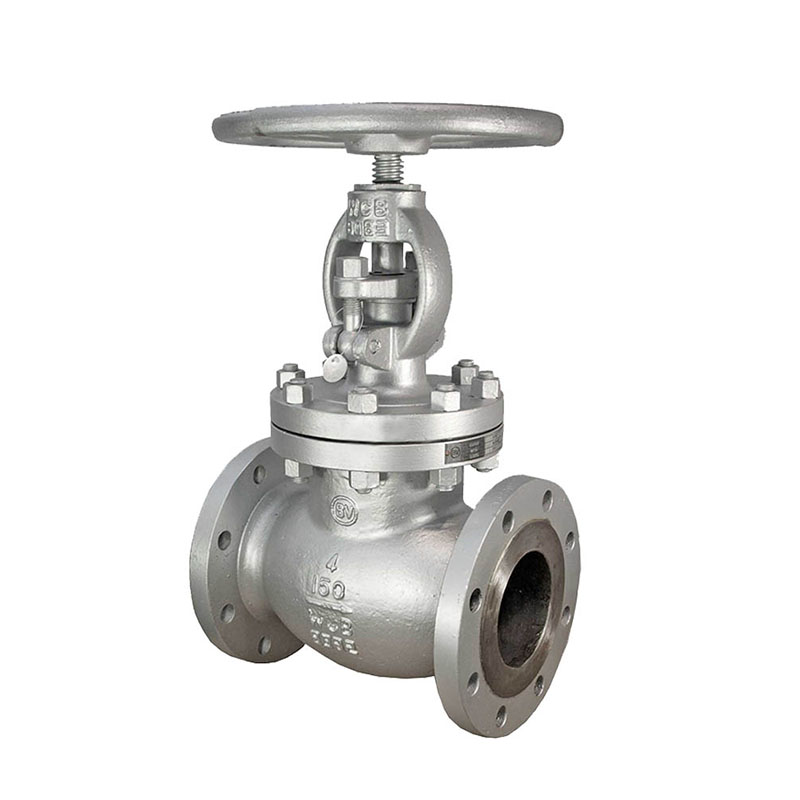

ANSI Cast Steel Globe Valve

ANSI cast steel globe valve can be used to control the flow of various types of fluid, such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive medium.
The opening and closing part of Globe valve is a plug disc, and the valve flap of globe valve moves along the center line of the valve seat in a straight line.

  • ANSI Cast Steel Globe Valve
  • ANSI Cast Steel Globe Valve
  • ANSI Stainless Steel Ball Valve Range:

Production Size: 1/2"~24". DN15~DN600.

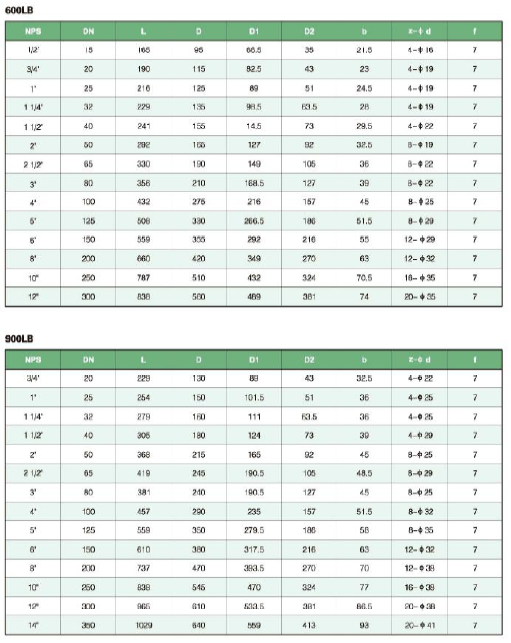

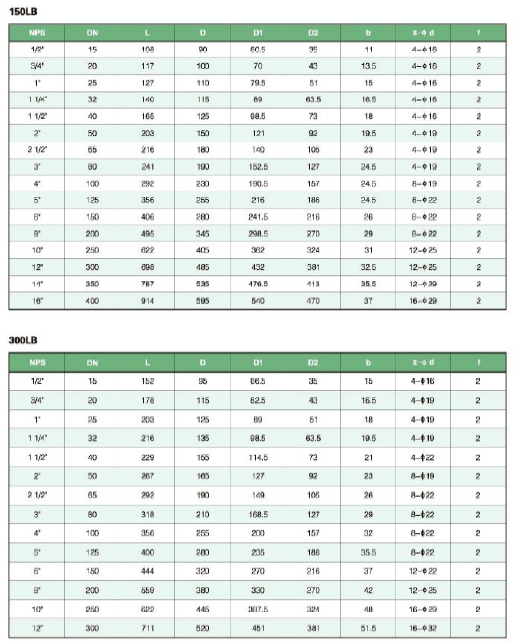

Pressure: 150LB, 300LB, 600LB, 900LB.

  • ANSI Cast Steel Globe Valve Standard:

Design Standard: API600, API6D, BS1873.

Face to Face: ASME B16.34.

Flange Standard: ASME B16.5.

Testing Standard: API 598.

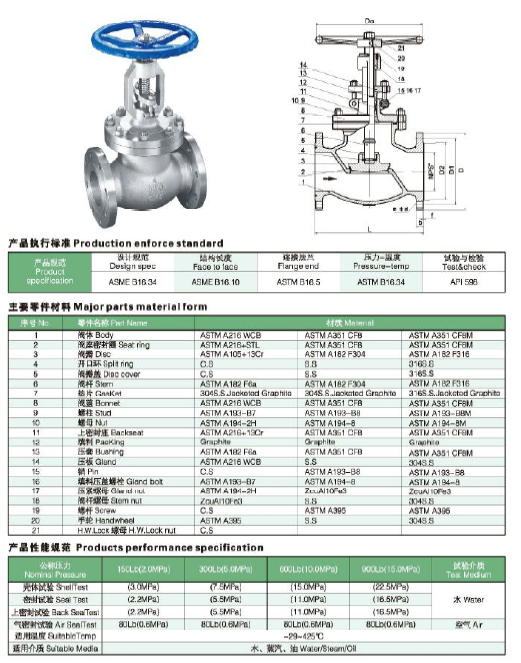

  • ANSI Cast Steel Globe Valve Material of Parts:

Body: ASTM A216 WCB.

Bonnet: ASTM A216 WCB.

Stem: 2Cr13, SS304, SS316, carbon steel.

Stem Nut: brass, ductile iron.

Disc: ASTM A216 WCB.

Seat: 13Cr13, Stellite.

Hand Wheel: ASTM A536 65-45-12.

Bonnet Bolt: ASTM A193 B7.

Bonnet Nut: ASTM A194 2H.

Packing: Graphite.

  • ANSI Cast Steel Globe Valve
  • ANSI Cast Steel Globe Valve
  • ANSI Cast Steel Globe Valve
