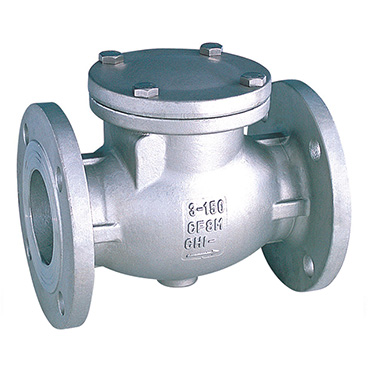

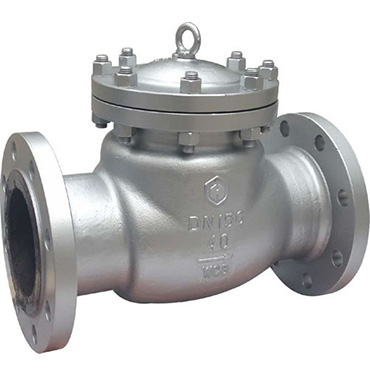

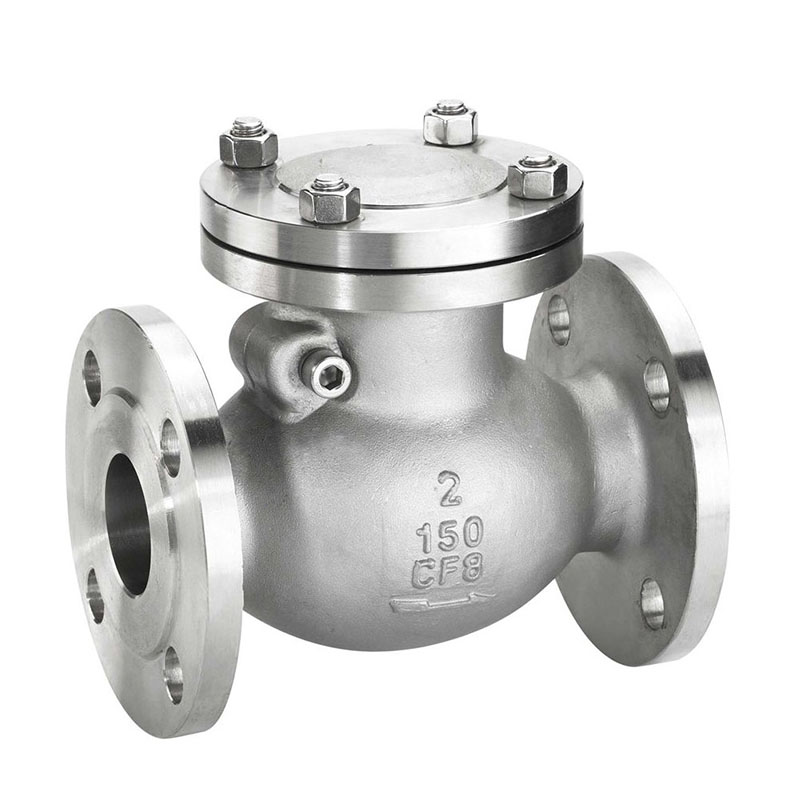

ANSI Stainless Steel Check Valve
ANSI stainless steel check valve is a valve which automatically opens and closes valve disc depending on the flow of the medium itself, and it is also used to prevent medium from flowing backwards. It is also called single direction valve, no-return valve and back pressure valve. It is a kind of automatic valve, main function of check valve is to prevent the reverse flow of the medium, prevent the reversal of the pump and drive motor, and the discharge of the container medium.
- ANSI Stainless Steel Check Valve Standard:
Production Size: 1"~30".DN25~DN750.
Pressure: 150LB, 300LB, 600LB, 900LB, 1500LB.
Design Standard: ANSI B16.34.
Face to Face: ASME B16.10.
Flange Standard: ASME B16.5.
Testing Standard: API 598.

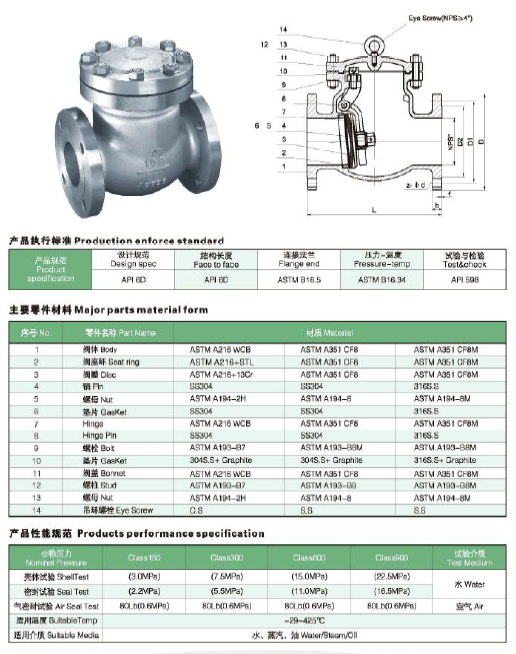

- ANSI Stainless Steel Check Valve Material of Parts:
Body: CF3, CF3M, CF8, CF8M.
Bonnet: CF3, CF3M, CF8, CF8M.
Stem: 2Cr13, SS304, SS316, carbon steel.
Stem Nut: brass, Ductile iron.
Disc: CF3, CF3M, CF8, CF8M.
Seat: CF3, CF3M, CF8, CF8M.
Nut: CF3, CF3M, CF8, CF8M.
Arm Hinge: CF3, CF3M, CF8, CF8M.
Hing Pin: CF3, CF3M, CF8, CF8M.
