DIN Butterfly Valve
Quantity
Inquiry

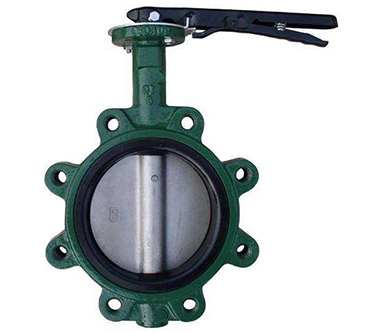

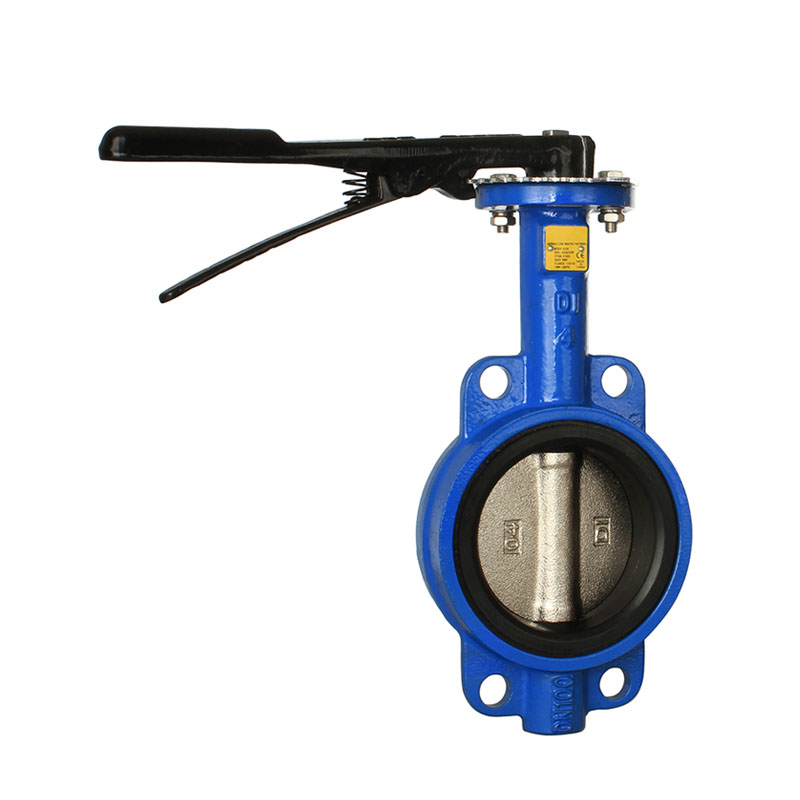

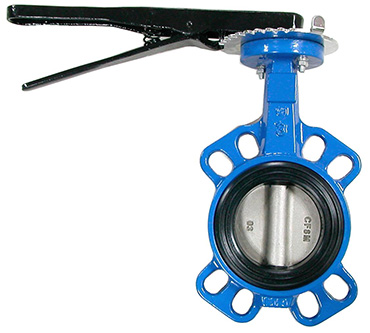

DIN Butterfly Valve

DIN butterfly Valve is not only widely used in oil, gas, chemical industry, water treatment and other general industry, but also used in the cooling water system of the thermal power station. It is a kind of butterfly valve, which has Lug shape. It is divided into manual operation, worm operation, electric operation according to the driving way, it is divided into the flange and the wafer according to the connection.

  • DIN Butterfly Valve
  • DIN Butterfly Valve
  • DIN Butterfly Valve Range:

Production Size: 1 1/2"~40".DN40~DN1000.

Pressure Range: PN10,PN16.

  • DIN Butterfly Valve Standard:

Design Standard: DIN.

Face to Face: DIN2501.

Flange Standard: DIN3202.

Testing Standard: EN12266.

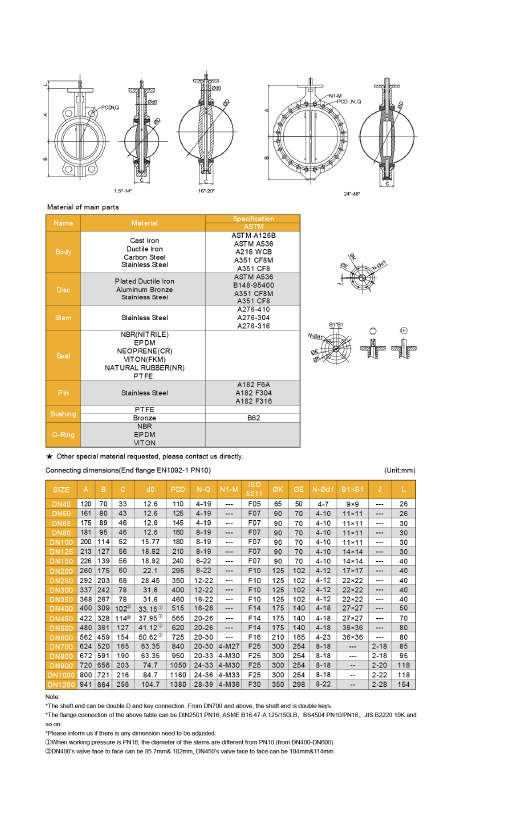

  • DIN Butterfly Valve Material of parts:

Body: GG25.

Stem: 2Cr13/SS304/SS316/carbon steel.

Disc: Ductile Iron, SS304, SS316.

Gasket: NBR, PTFE, EPDM, Teflon.

Seat: NBR, EPDM, PTFE, RPTFE.

Packing: NBR, PTFE, EPDM, Teflon.

Handle: ASTM A536 65-45-12.

  • DIN Butterfly Valve
  • DIN Butterfly Valve
