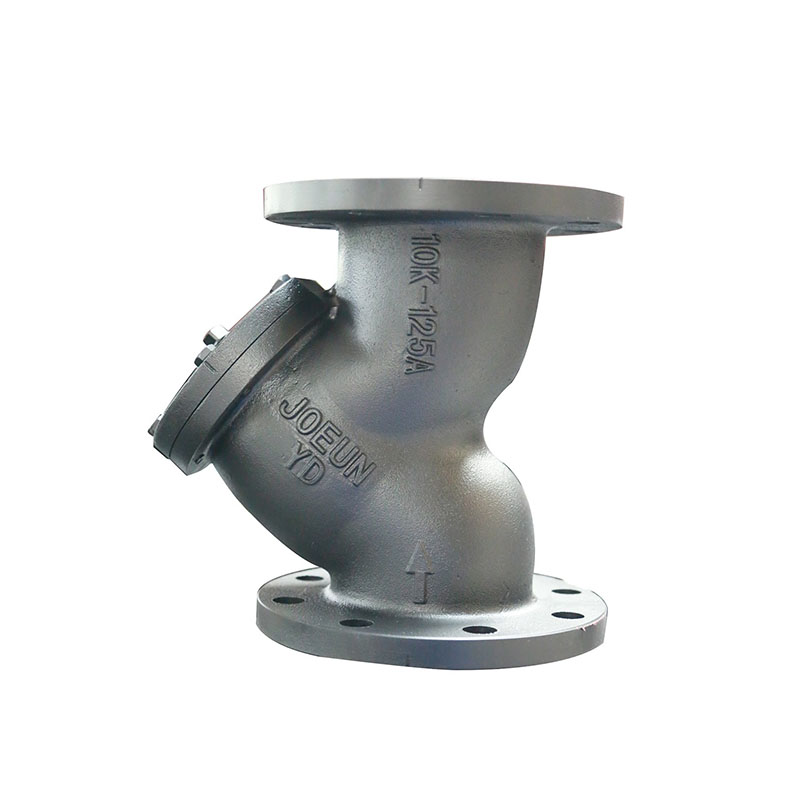

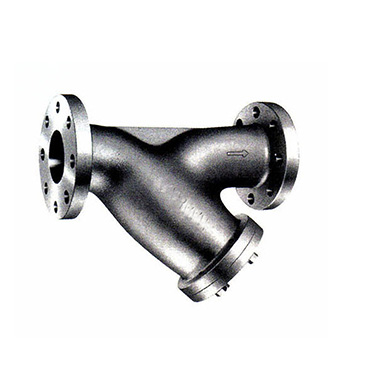

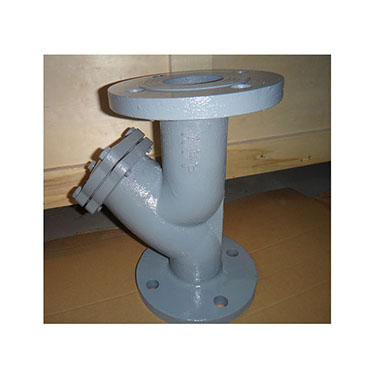

JIS Strainer
The structure of DIN Strainer is advanced, the resistance is small, it is convenient to clean the sewage. The medium are suitable for water, oil, steam. It generally installed in front end of the Pressure relief valve and Pressure reduce valve, cleans the sewage of in the medium and protects the normal work of valves and other devices. When people clean the strainer, people just take out the screen, after cleaning the screen, reinstall into the body, it is very convenient to fix and maintain.
- JIS Strainer Range:
Production Size: 1 1/2"-20" DN40-DN500mm.
Pressure Range: 10k.

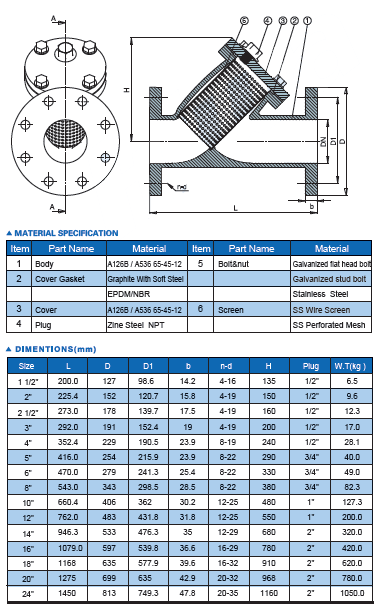

- JIS Strainer Standard:
Design Standard: KS B1538.
Face to Face: KS.
Flange Standard: KS B1511.
Testing Standard: KS B 2304.
- JIS Strainer Main Material of Parts:
Body: FC20.
Bonnet: FC20.
Screen: 2Cr13/SS304/SS316.
Plug: FC20, brass.
Cover Gasket: Graphite with soft steel, EPDM, NBR.
