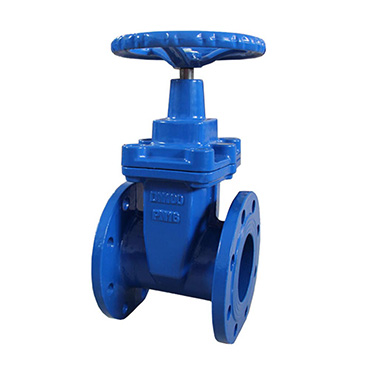

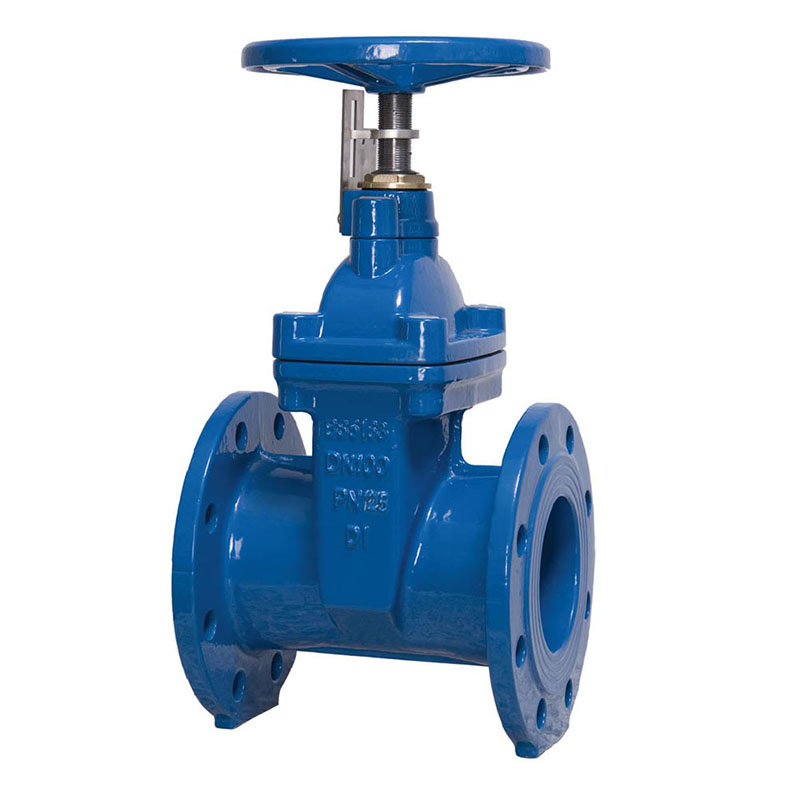

BS Resilient Rising Metal Gate Valve

The appearance and design are Perfect, replace the copper nut under the condition of pressure environment, and needn't to stop working, it is very convenient and practical! The Valve with anti-theft function. The valve cover is provided with a black protective sleeve which has the functions of dust prevention and water resistance, and the service life can reach 2 years.

  • BS Resilient Rising Metal
  • BS Resilient Rising Metal
  • BS Resilient Gate Valve Standard:

Production Size: 2"-40" DN50-DN1000mm.

Pressure Range: PN6, PN10,P N16.

Design Standard: BS5163, BS5150.

Face to Face: BS5150.

Flange Standard: EN 1092-2.

Testing Standard: ISO 5208.

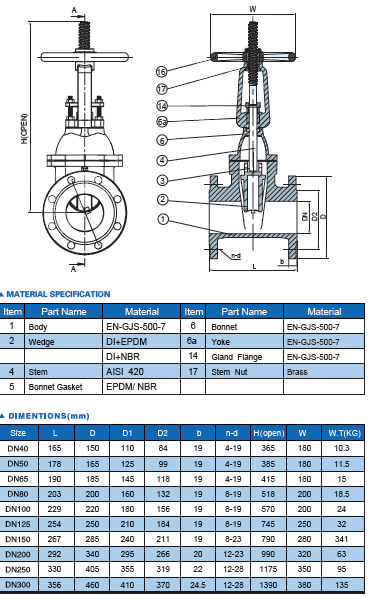

  • BS Non-rising Gate Valve Main Material of Parts:

Body: EN-GJS-500-7.

Bonnet: EN-GJS-500-7.

Stem: 2Cr13/SS304/SS316/carbon steel.

Stem Nut: brass.

Disc: EN-GJS-500-7.

Seat: NBR, EPDM, PTFE.

Bonnet Gasket: Graphite.

Packing: Graphite.

Hand wheel: EN-GJS-500-7.

  • BS Resilient Rising Metal
