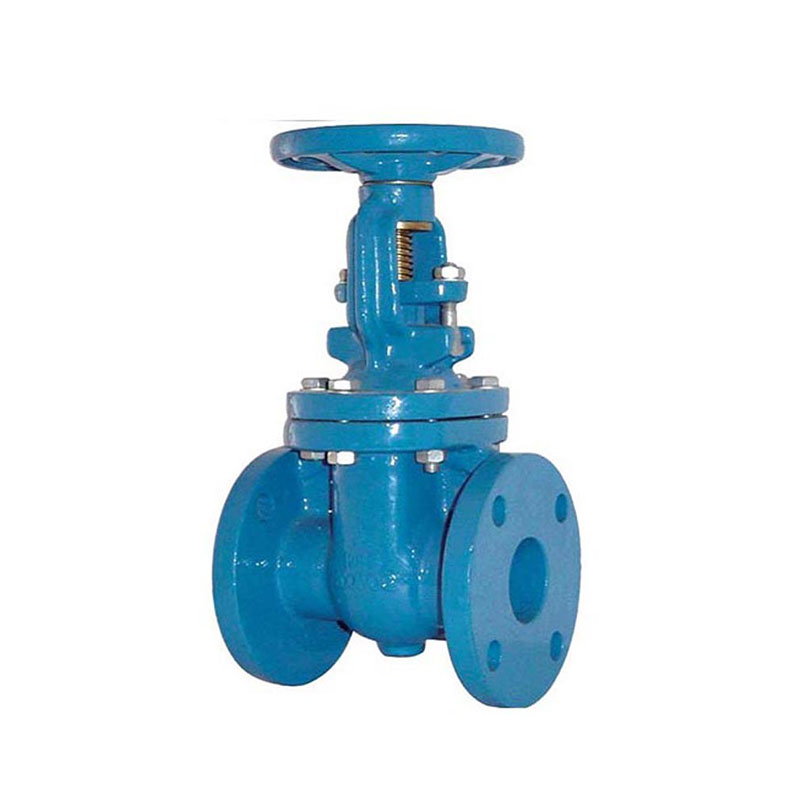

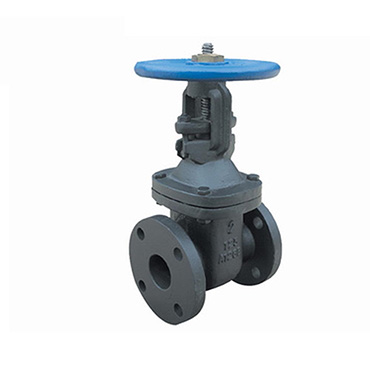

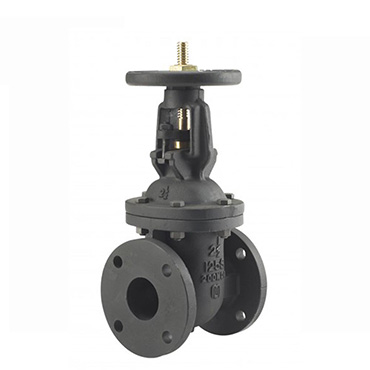

ANSI Rising Metal Gate Valve

ANSI Rising Gate Valve is widely used in petroleum, chemical, natural gas, electric power, metallurgy , pharmacy, building, water supply and other industries for three performances: availability, reliability and stability. All users rate our quality high.
This product is produced and designed according API standard with reliable sealing.

  • ANSI Rising Metal
  • ANSI Rising Metal
  • ANSI Rising Gate Valve Standard:

Production Size: 2"-40" DN50-DN1000mm.

Pressure Range: 125LB, 150LB.

Design Standard: MSS SP-70

Face to Face: ANSI B16.10

Flange Standard: ANSI B16.1

Testing Standard: MSS SP-70, API 598

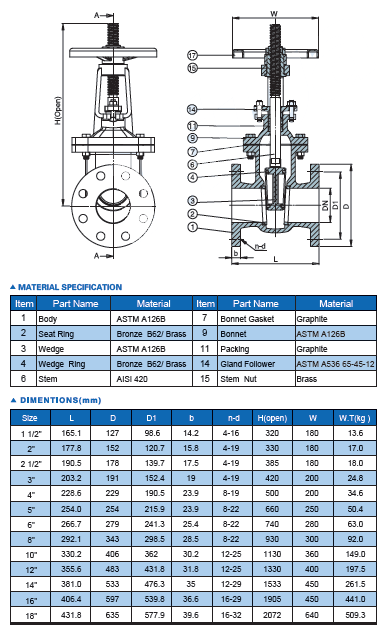

  • ANSI Rising Gate Valve Main Material of Parts:

Body: ASTM A126B.

Bonnet: ASTM A126B.

Stem: 2Cr13/SS304/SS316/carbon steel.

Stem Nut: brass.

Wedge Ring: Bronze B62/Brass

Disc: ASTM A126B

Seat: Bronze B62/Brass

Bonnet Gasket: Graphite

Packing: Graphite

Hand wheel: ASTM A536 65-45-12

  • ANSI Rising Metal
