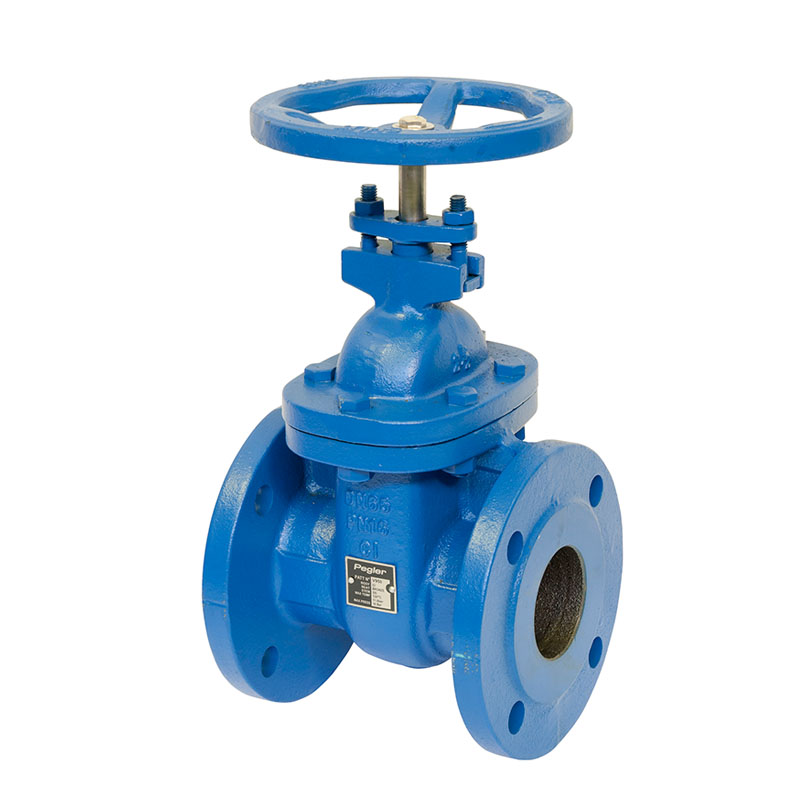

ANSI No-rising Metal Gate Valve
Quantity
Inquiry

DIN Resilient Seal Gate Valve

1. Perfect appearance and design.

2. Replace the copper nut under the condition of pressure environment, and needn't to stop working, it is very convenient and practical!

3. The Valve with anti-theft function.

4. The valve cover is provided with a black protective sleeve which has the functions of dust prevention and water resistance, and the service life can reach 2 years.

  • ANSI No-rising Metal Gate Valve
  • ANSI No-rising Metal Gate Valve
  • DIN Resilient Seal Gate Valve Standard:

Production Size: DN50-DN1600mm.

Pressure Range: PN10, PN16, PN25.

Design Standard: DIN3352.

Face to Face: DIN3202 F4/F5.

Flange Standard: EN 1092.

Testing Standard: EN12226.

  • Main Material of parts:

Body: GGG45/GGG50.

Bonnet: GGG45/GGG50.

Stem: 2Cr13/SS304/SS316/carbon steel.

Stem Nut: brass.

Disc: GGG45/GGG50.

Seat: EPDM/NBR/PTFE.

Handwheel: GGG45/GGG50.

  • ANSI No-rising Metal Gate Valve
