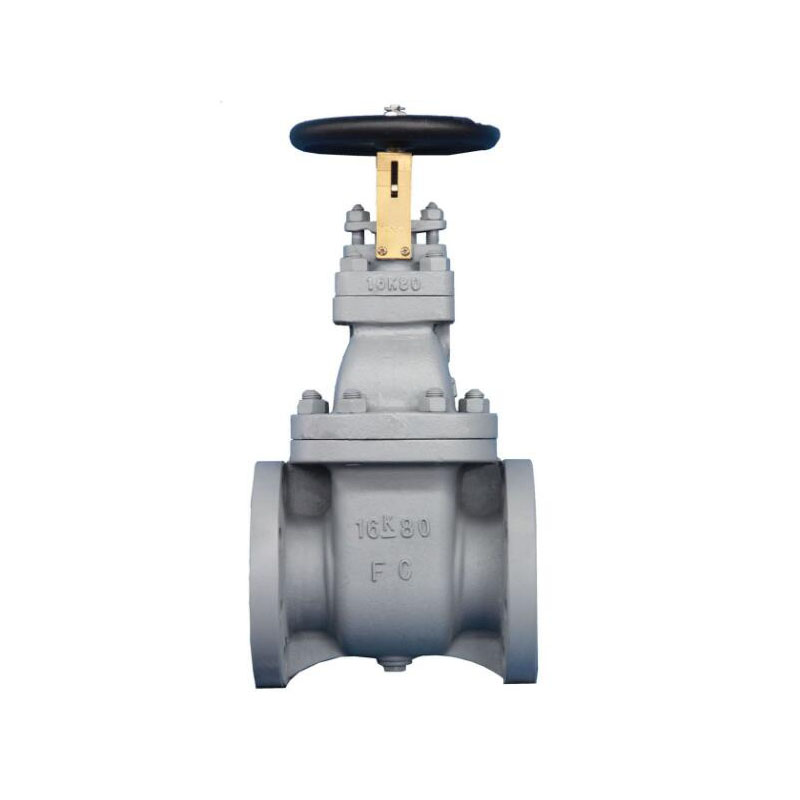

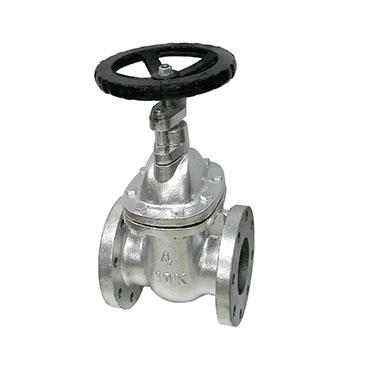

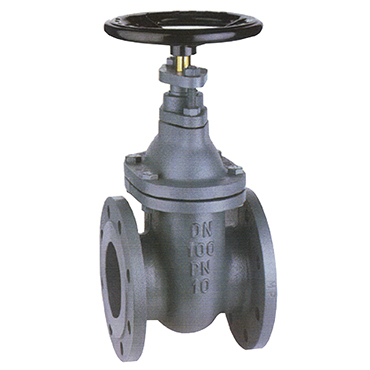

JIS non-rising Gate Valve is widely used in petroleum, chemical, natural gas, electric power, metallurgy, pharmacy, building, water supply and other industries for three performances: availability, reliability and stability. All users rate our quality high.
This product is produced and designed according API standard with reliable sealing.
Production Size: 2"-12" DN50-DN300mm.
Pressure Range: 10k.
Design Standard: JIS B2031.
Face to Face: JIS B2031.
Flange Standard: JIS B2239.
Testing Standard: KS B 2304.
Body: FC20.
Bonnet: FC20.
Stem: 2Cr13/SS304/SS316/carbon steel.
Stem Nut: brass.
Wedge Ring: Bronze B62/Brass.
Disc: FC20.
Bonnet Gasket: Graphite.
Packing: Graphite.
Hand Wheel: FC 250.
