Din Non-Rising Gate Valve F5
Quantity

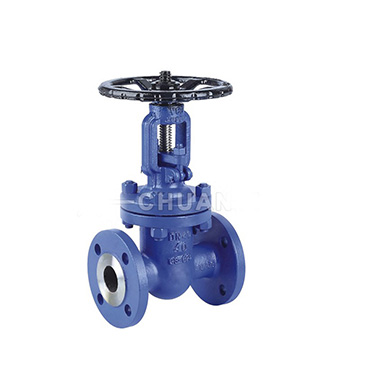

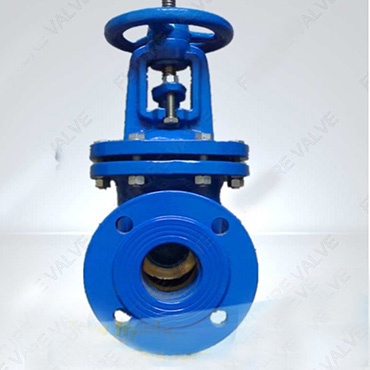

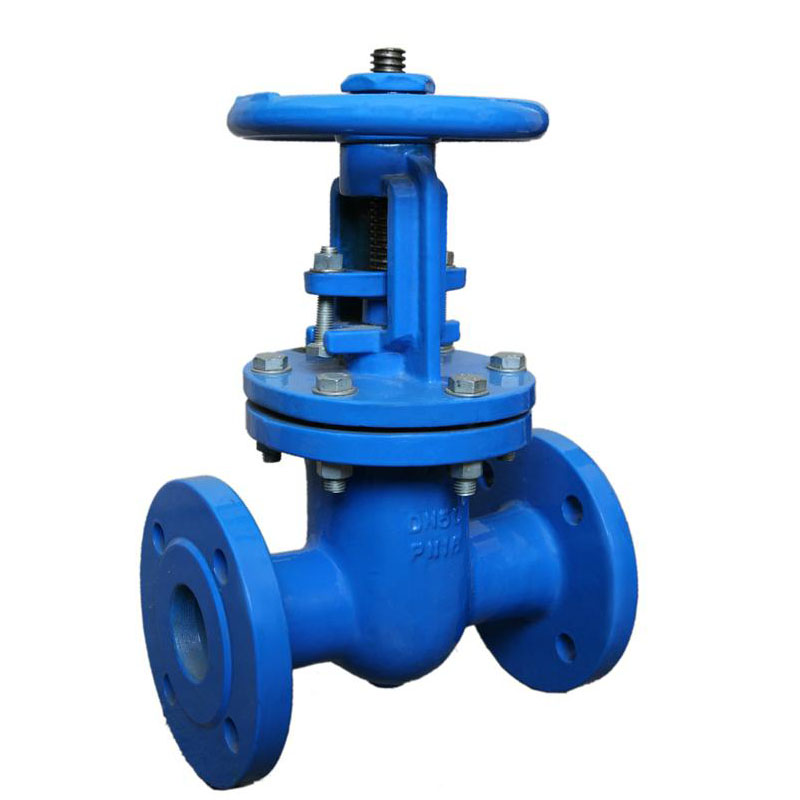

Din Non-Rising Gate Valve F5

DIN Non-rising Gate Valve is widely used in petroleum, chemical, natural gas, electric power, metallurgy, pharmacy, building, water supply and other industries for three performances: availability, reliability and stability. All users rate our quality high.
This product is produced and designed according API standard with reliable sealing.

  • Din Non-Rising Gate Valve F5
  • Din Non-Rising Gate Valve F5
  • DIN F5 Rising Gate Valve Range:

Production Size: 1 1/2"-12" DN40-DN600mm.

Pressure Range: PN10, PN16.

  • DIN F5 Rising Gate Valve Standard:

Design Standard: DIN 3352.

Face to Face: DIN 3202 F5.

Flange Standard: EN 1092-2PN10, PN16.

Testing Standard: ISO 5208.

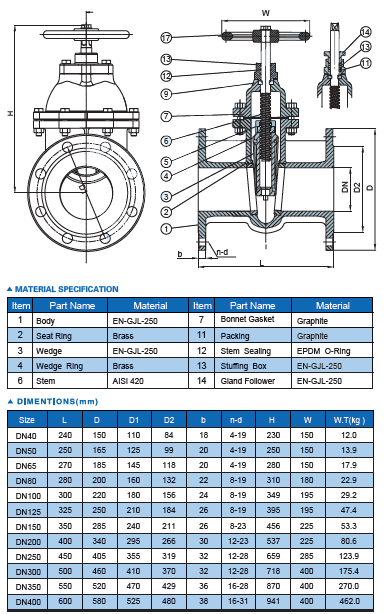

  • DIN F5 Rising Gate Valve Main Material of Parts:

Body: EN-GJL-250.

Bonnet: EN-GJL-250.

Stem: 2Cr13/SS304/SS316/carbon steel.

Stem Nut: brass.

Wedge Ring: Bronze B62/Brass.

Disc: EN-GJL-250.

Seat: Bronze B62/Brass.

Packing: Graphite.

Hand Wheel: ASTM A536 65-45-12.

  • Din Non-Rising Gate Valve F5
