DIN Ball valve
Quantity
Inquiry

DIN Ball valve

DIN ball valve is widely used in petroleum refining, long-distance pipeline, chemical industry, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries. It, the opening and closing (ball) is driven by the stem and revolves around the axis. The sealing performance is good, the seal of the hard sealed is made by artificial grinding until the valve core is in perfect agreement with the seal ring. So its sealing performance is reliable, the switch is light.

  • DIN Ball valve
  • DIN Ball valve

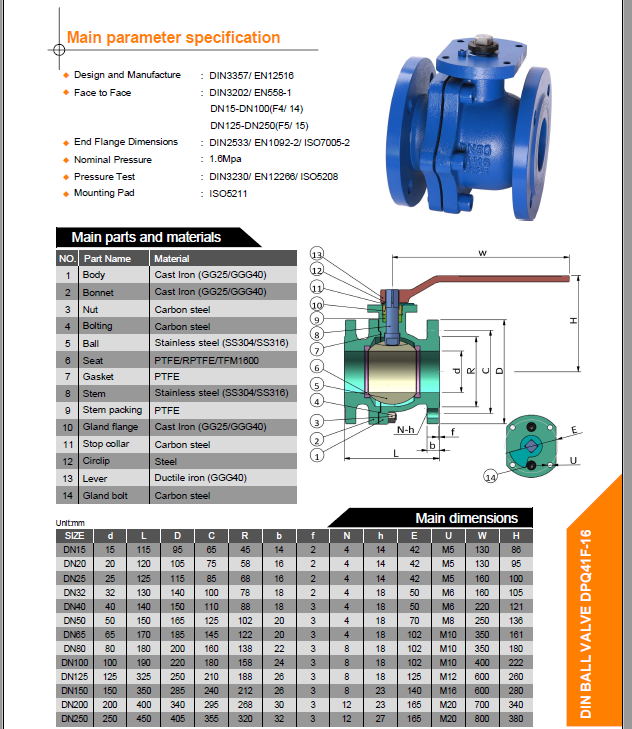

  • DIN Ball Valve Range:

Production Size: 2"~8". DN50~DN200

Pressure: PN16

  • DIN Ball Valve Standard:

Design Standard: DIN 3357, EN12516.

Face to Face: DIN 3202, EN558-1, DN15-DN150(F4), DN200(F5).

Flange Standard: DIN2533, EN1092-2.

Testing Standard: EN12266, DIN3230, ISO5208.

  • DIN Ball Valve Main Material of Parts:

Body: GG25, GGG40.

Bonnet: GG25, GGG40.

Stem: 2Cr13/SS304/SS316/carbon steel.

Ball: SS304, SS316.

Gasket: PTFE.

Seat: PTFE, RPTFE

Stem Packing: PTFE.

Handle: ASTM A536 65-45-12.

  • DIN Ball valve
