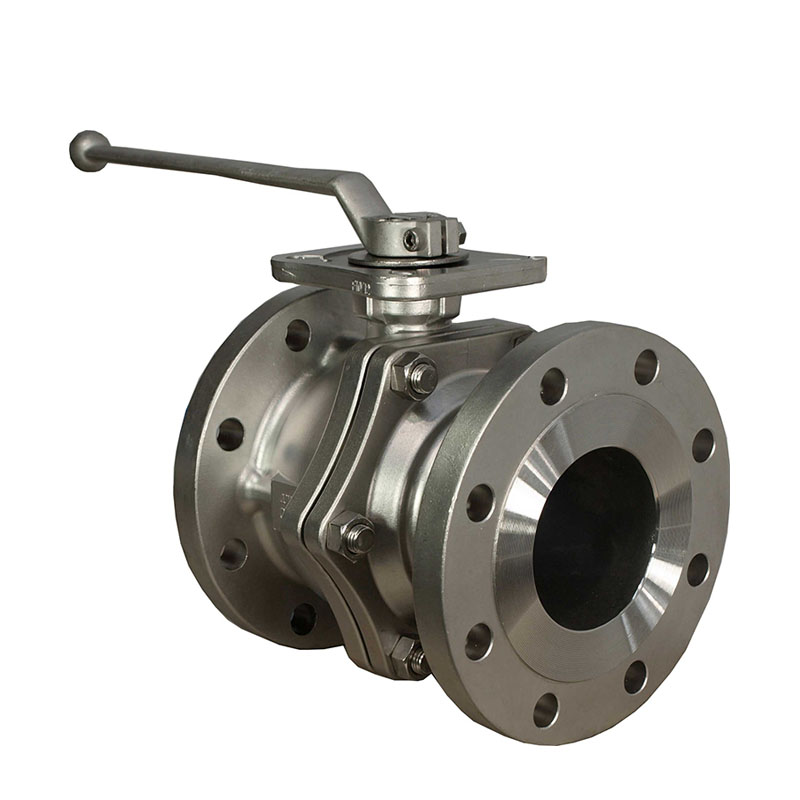

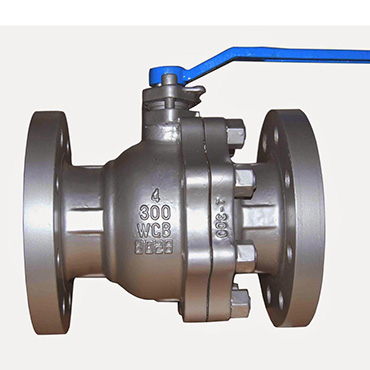

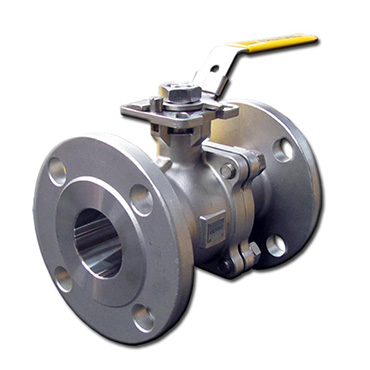

ANSI stainless steel ball valve is widely used in petroleum refining, long-distance pipeline, chemical industry, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries. It, the opening and closing (ball) is driven by the stem and revolves around the axis. The sealing performance is good, the seal of the hard sealed is made by artificial grinding until the valve core is in perfect agreement with the seal ring. So its sealing performance is reliable, the switch is light.

•
•

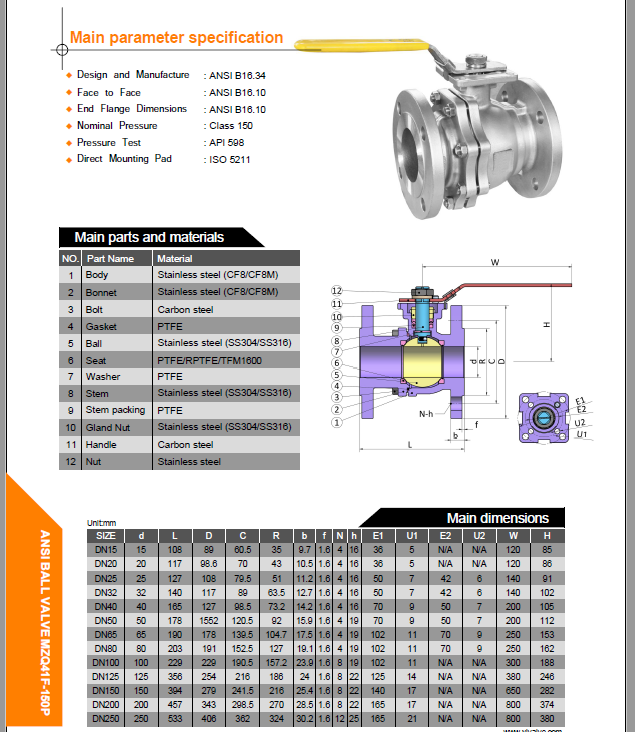

Production Size: 1/2"~10". DN15~DN250

Pressure: 150LB, 300LB, 600LB, 900LB

Design Standard: ANSI B16.34.

Face to Face: ASME B16.10.

Flange Standard: ASME B16.10.

Testing Standard: API 598.

Body: CF3, CF3M, CF8, CF8M.

Bonnet: CF3, CF3M, CF8, CF8M.

Stem: 2Cr13/SS304/SS316/carbon steel.

Ball: CF3, CF3M, CF8, CF8M.

Packing: PTFE.

Seat: PTFE, RPTFE

Washer: PTFE.

Handle: ASTM A536 65-45-12.

•
