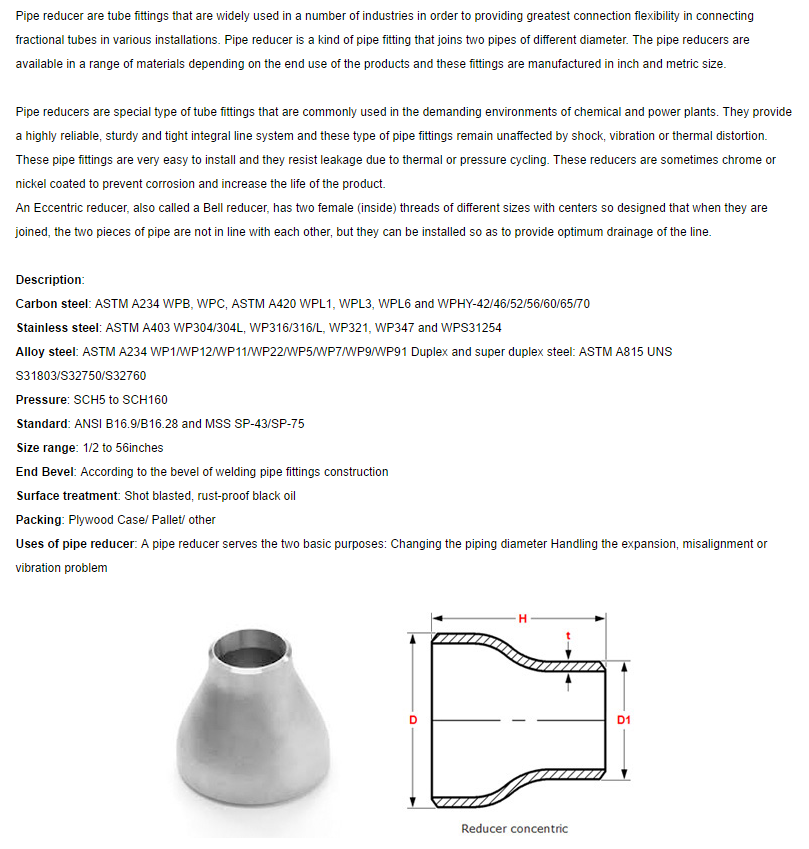

Concentric reducer are tube fittings that are widely used in a number of industries in order to providing greatest connection flexibility in connecting fractional tubes in various installations. Pipe reducer is a kind of pipe fitting that joins two pipes of different diameter. The pipe reducers are available in a range of materials depending on the end use of the products and these fittings are manufactured in inch and metric size.
Pipe reducers are special type of tube fittings that are commonly used in the demanding environments of chemical and power plants. They provide a highly reliable, sturdy and tight integral line system and these type of pipe fittings remain unaffected by shock, vibration or thermal distortion. These pipe fittings are very easy to install and they resist leakage due to thermal or pressure cycling. These reducers are sometimes chrome or nickel coated to prevent corrosion and increase the life of the product.
An Eccentric reducer, also called a Bell reducer, has two female (inside) threads of different sizes with centers so designed that when they are joined, the two pieces of pipe are not in line with each other, but they can be installed so as to provide optimum drainage of the line.

  • Concentric Reducer
  • Concentric Reducer
  • Description:

Concentric Reducer Material.

Carbon Steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 and WPHY-42/46/52/56/60/65/70.

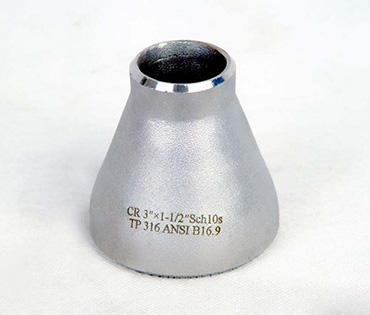

Stainless Steel: ASTM A403 WP304/304L, WP316/316/L, WP321, WP347 and WPS31254.

Alloy Steel: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91 Duplex and super duplex steel: ASTM A815 UNS S31803/S32750/S32760.

Concentric Reducer Pressure: SCH5 to SCH160.

Concentric Reducer Standard: ANSI B16.9/B16.28 and MSS SP-43/SP-75.

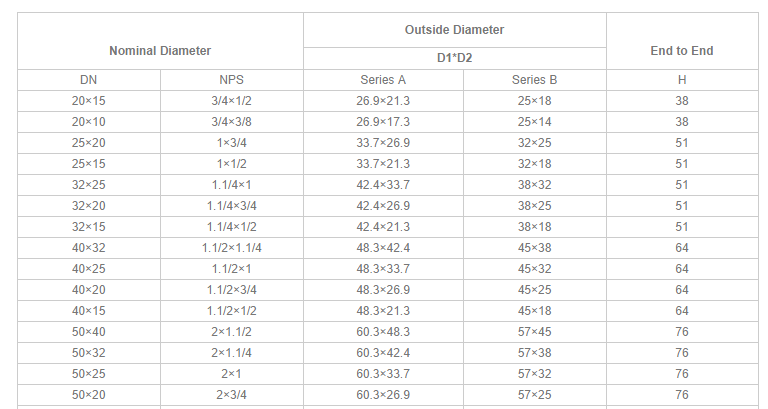

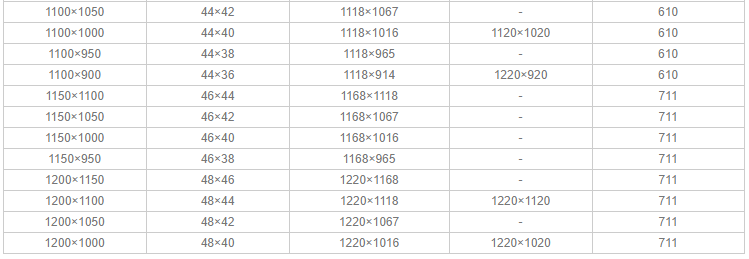

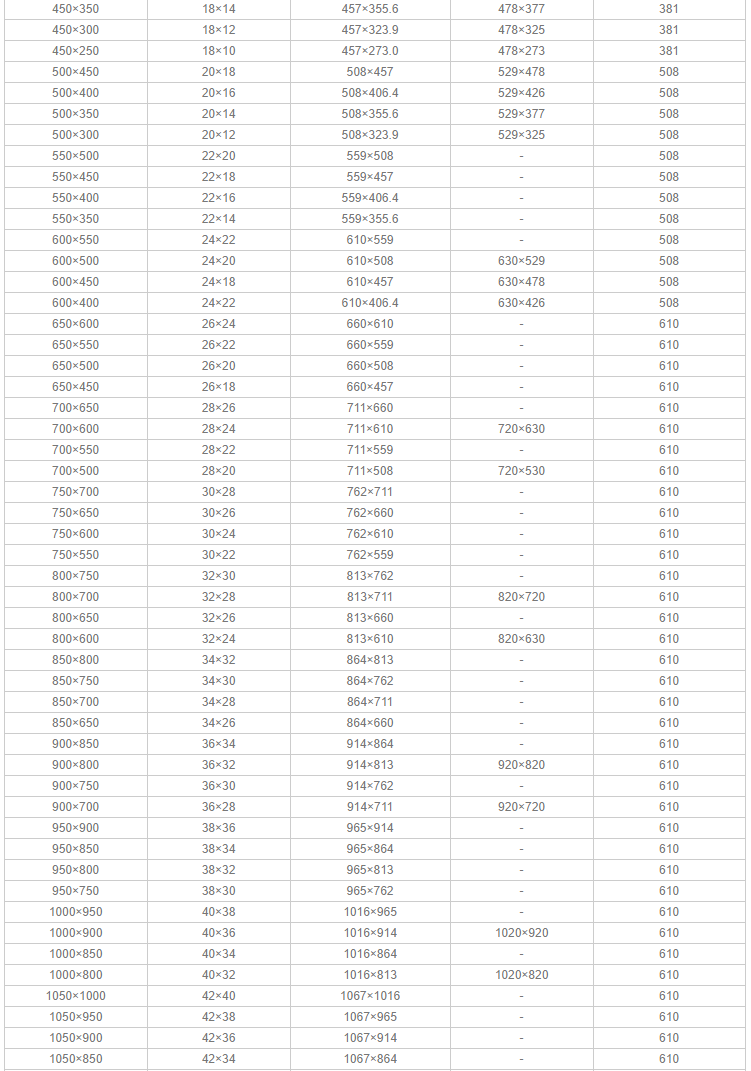

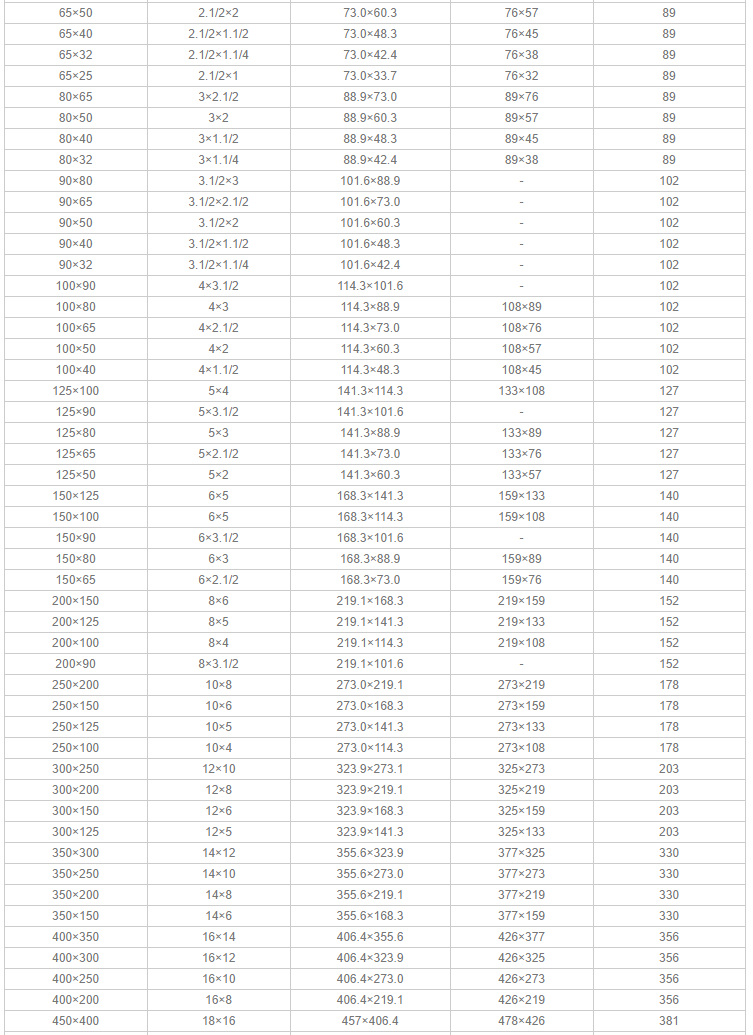

Concentric Reducer Size Range: 1/2 to 56inches.

End Bevel: According to the bevel of welding pipe fittings construction.

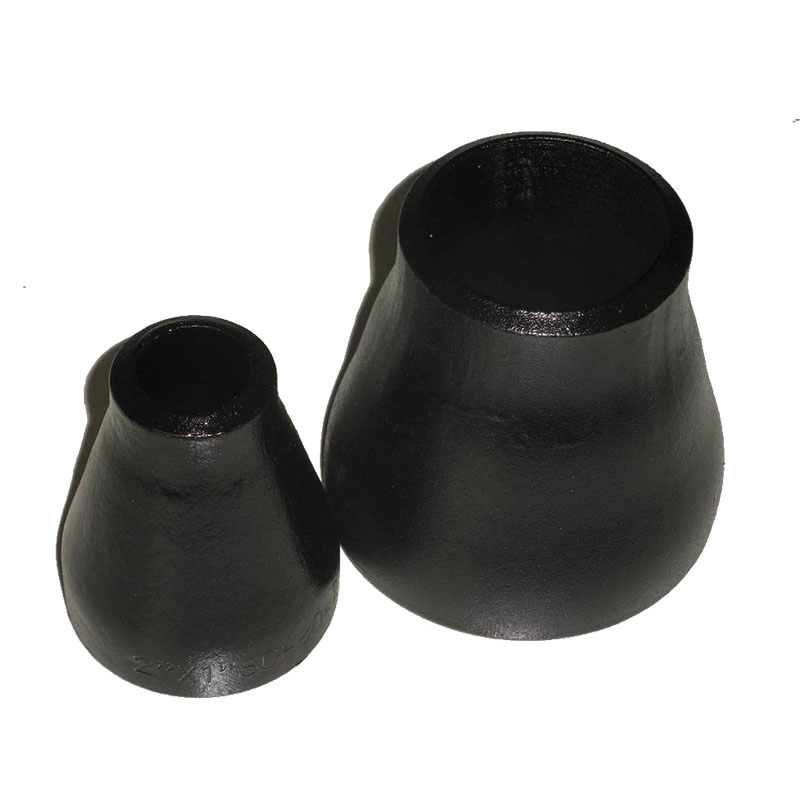

Surface Treatment: Shot blasted, rust-proof black oil.

Packing: Plywood Case/ Pallet/ other.

Uses of Pipe Reducer: A pipe reducer serves the two basic purposes: changing the piping diameter handling the expansion, misalignment or vibration problem.
