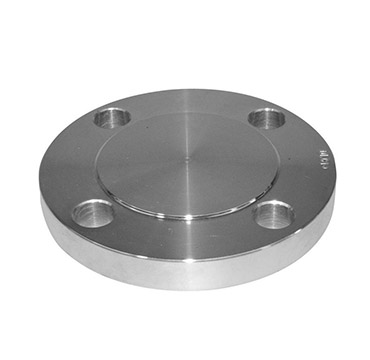

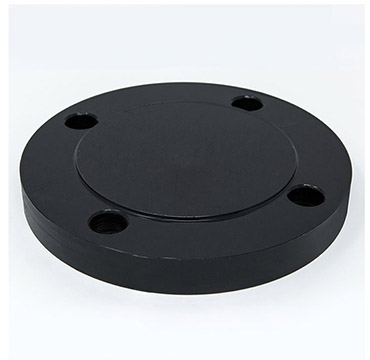

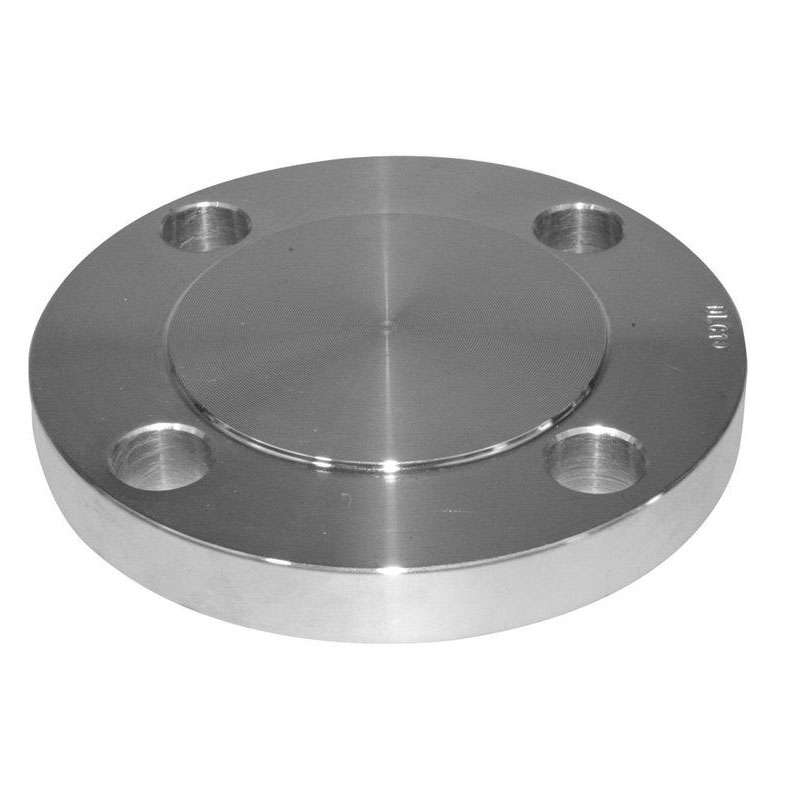

Blind Flange

BS blind flange is also called the blind plate or flange cover, which is a flange without the holes in the middle for sealing the plug of the pipe. There are many types of sealing faces, including flat face, raised face, ring type joint. It is used to insulate or cut off the medium of the pipe, the function is the same the head cap and the role because of the good sealing performance, the system that need completely isolate mostly use it.

  • Blind Flange
  • Blind Flange
  • BS Blind Flange Range:

Production Size: DN10-DN1200mm

Pressure Range: PN0.1, PN2.5, PN10, PN16, PN25, PN40, PN64, PN100

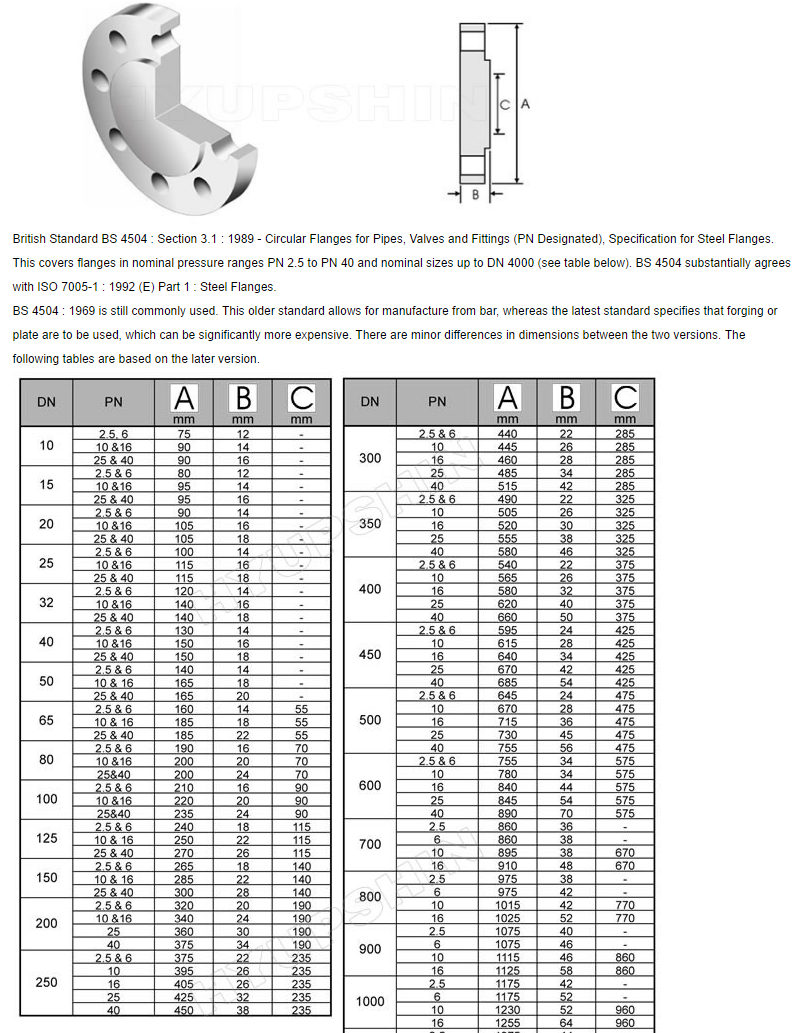

  • BS Blind Flange Standard:

Production Standard: BS, JIS, GOST, ANSI, DIN, GB

  • BS Blind Flange Main Material of Parts:

A105, 20#, Q235, 16Mn, A350 LF1, LF2, CL1/CL2, LF3 CL1/CL2, A694

F42, F46, F48, F50, F52, F56, F60, F65, F70; A182

F304, 304L, F316, F316L, 321, 18-8, A182F1, F5a, F9, F11, F12, F22, F91, A182 F12, F11, 16MnR

  • Blind Flange
  • Blind Flange
