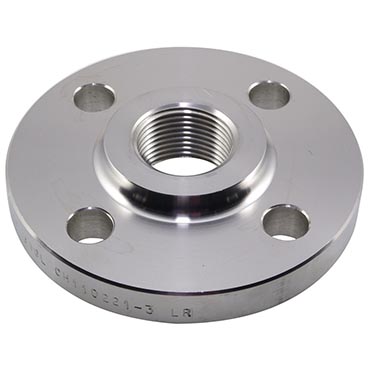

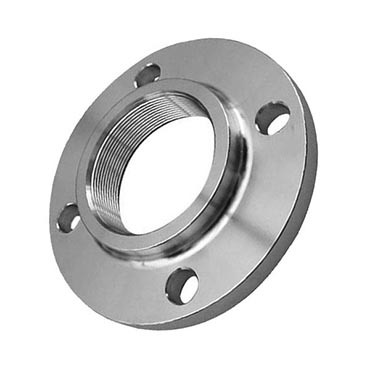

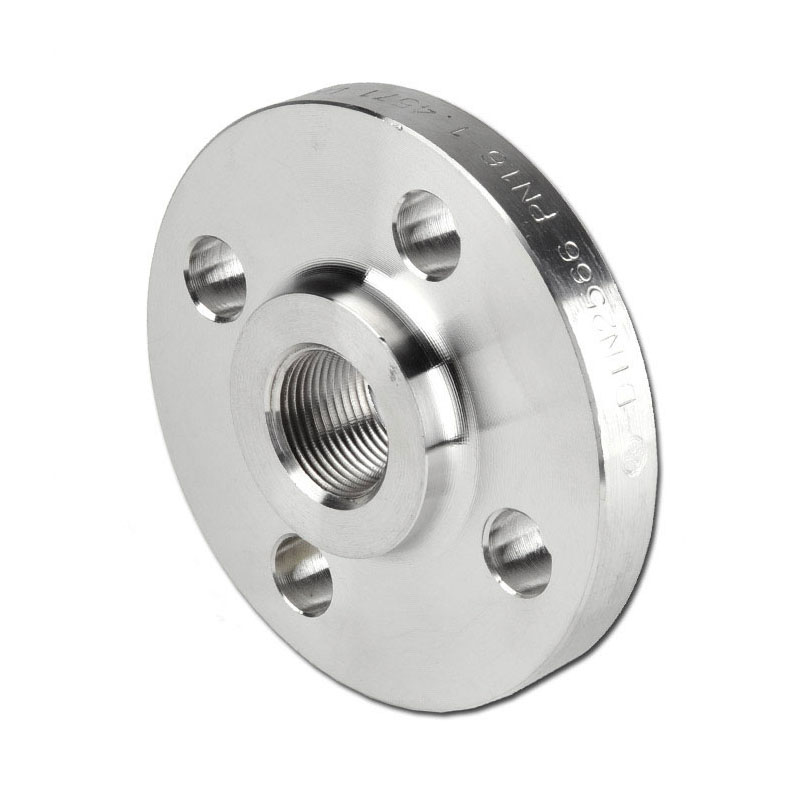

Threaded Flange

EN Threaded Flange also is called Screw flange, the inner hole is machined to the pipe thread, which connects to the pipe with the screw, it is not welding flange.It is easy to install and fix, but it only used in from -45 degree to 20 degree and the outside diameter of the pipe is below 100 mm.

  • Threaded Flange
  • Threaded Flange

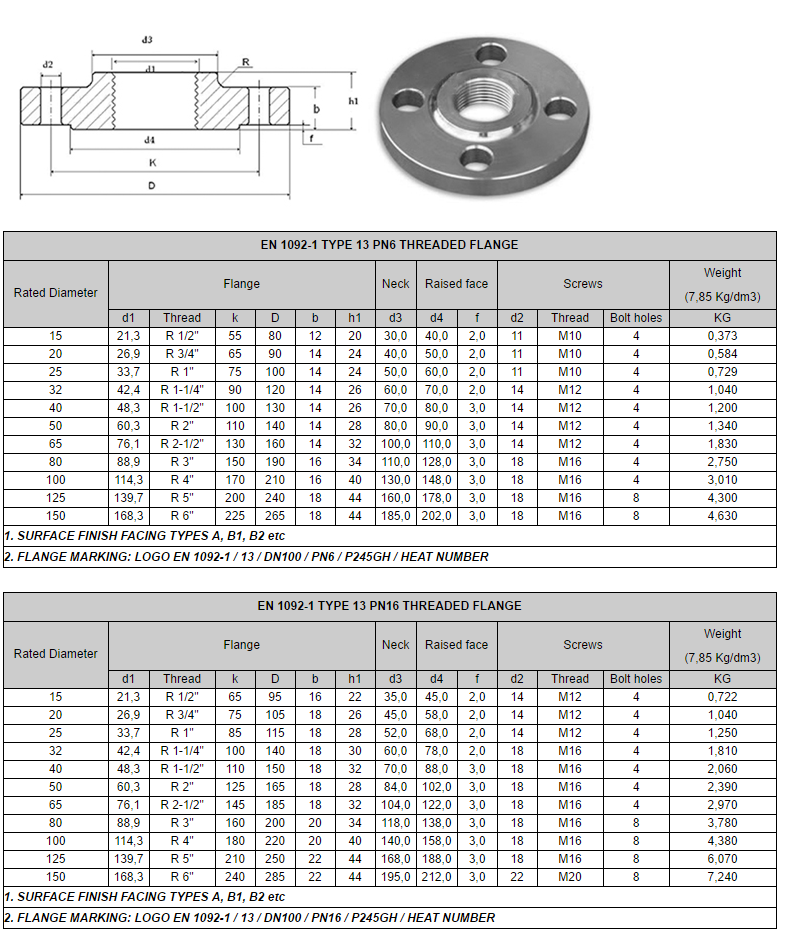

  • EN Threaded Flange range:

Production Size: DN10-DN100mm

Pressure Range: PN2.5, PN10, PN16, PN25, PN40, PN64, PN100, PN250, PN320, PN400

  • EN Threaded Flange Standard:

Production Standard: BS, JIS, GOST, ANSI, DIN, GB

  • EN Threaded Flange Main Material of Parts:

A105, 20#, Q235, 16Mn, A350 LF1, LF2, CL1/CL2, LF3 CL1/CL2, A694

F42, F46, F48, F50, F52, F56, F60, F65, F70; A182

F304, 304L, F316, F316L, 321, 18-8, A182F1, F5a, F9, F11, F12, F22, F91, A182 F12, F11, 16MnR
