Hebei Pawofuou Valve And Pipe Fitting Technology Co.,LTD.

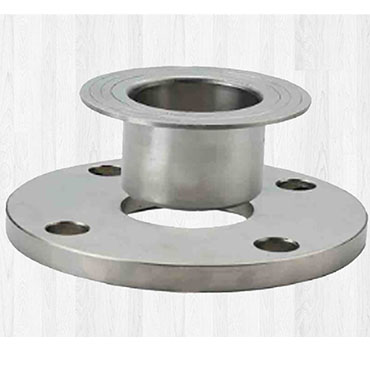

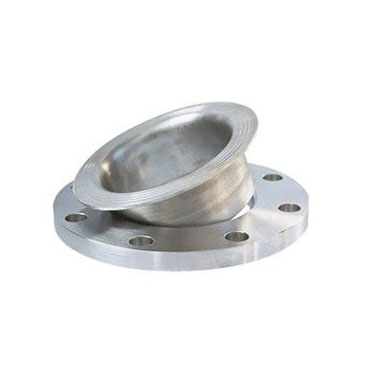

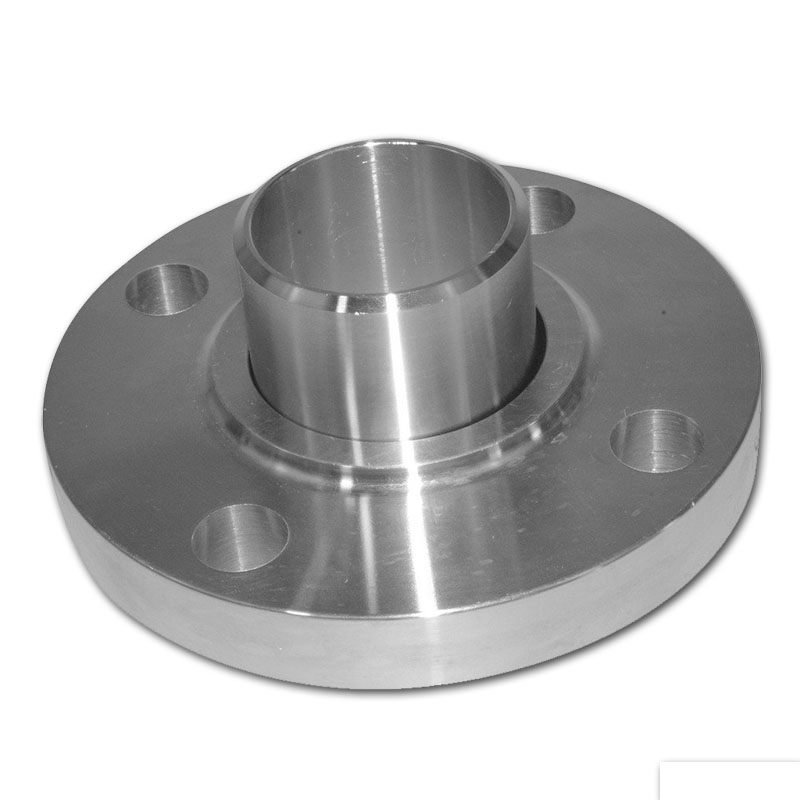

DIN Lap-joint Flange is a kind of the flange, which is set on the end of the pipe through the stub end and steel ring, it moves on the end of the pipe. It is generally used with the parts (expansion joint), the It is installed the two ends of the expansion joint, which connects to the pipe.

•
•

Production Size: DN10-DN2000

Pressure Range: PN2.5, PN6, PN10, PN16, PN25, PN40, PN100

Production Standard: BS, JIS, GOST, ANSI, DIN, GB

A105, 20#, Q235, 16Mn, A350 LF1, LF2, CL1/CL2, LF3 CL1/CL2, A694

F42, F46, F48, F50, F52, F56, F60, F65, F70; A182

F304, 304L, F316, F316L, 321, 18-8, A182F1, F5a, F9, F11, F12, F22, F91, A182 F12, F11, 16MnR

•
•
