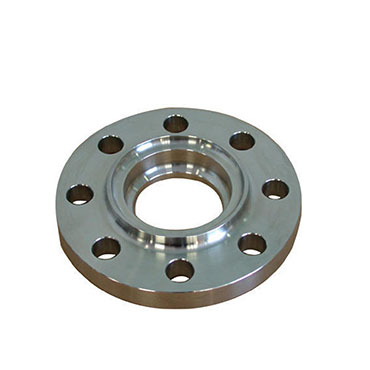

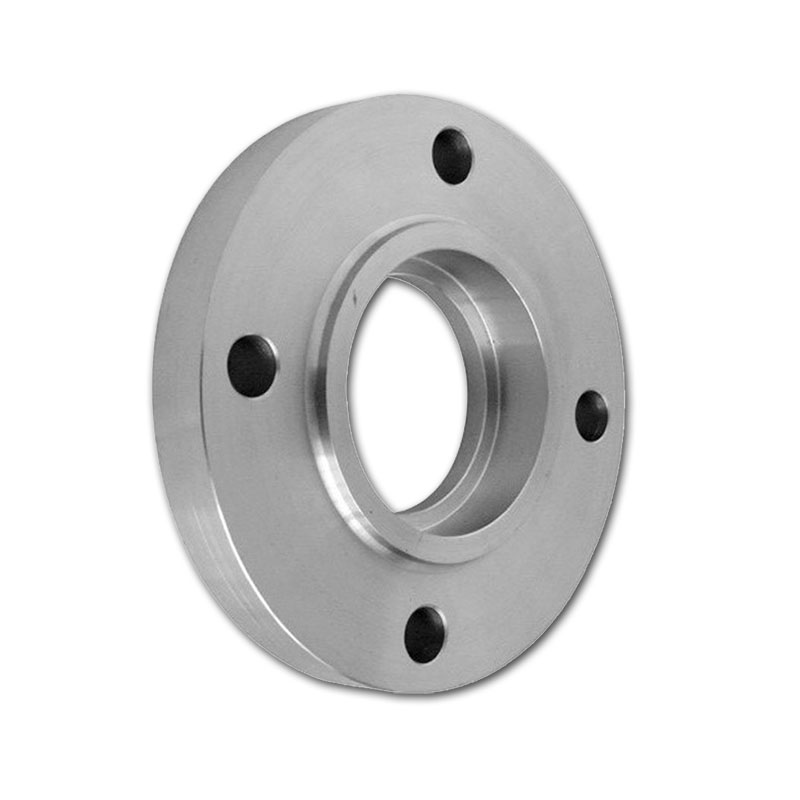

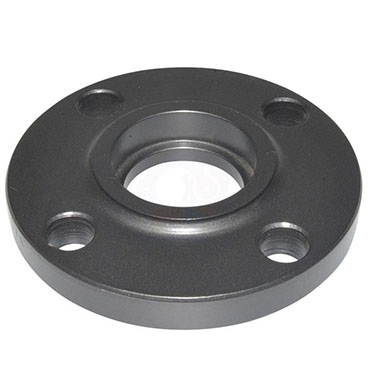

ANSI B16.5 Socket Welding Flange
Quantity

ANSI B16.5 Socket Welding Flange

ANSI Socket flange is that one end welds to the pipe, another end connects with the bolts. The sealing surface is divided into raised face, ring joint, male and female face, tongue and groove. It is widely used to Boiler and pressure vessel, petroleum, chemical, shipbuilding, pharmaceutical, metallurgy, machinery, stamping elbow and other industries.

  • ANSI B16.5 Socket Welding Flange
  • ANSI B16.5 Socket Welding Flange
  • ANSI Socket Flange Range:

Production Size: DN10-DN2000

Pressure Range: PN2.5, PN6, PN10, PN16, PN25, PN40, PN100

  • ANSI Socket Flange Standard:

Production Standard: BS, JIS, GOST, ANSI, DIN, GB

  • ANSI Socket Flange Main Material of Parts:

A105, 20#, Q235, 16Mn, A350 LF1, LF2, CL1/CL2, LF3 CL1/CL2, A694

F42, F46, F48, F50, F52, F56, F60, F65, F70; A182

F304, 304L, F316, F316L, 321, 18-8, A182F1, F5a, F9, F11, F12, F22, F91, A182 F12, F11, 16MnR

  • ANSI B16.5 Socket Welding Flange
  • ANSI B16.5 Socket Welding Flange
  • ANSI B16.5 Socket Welding Flange
  • ANSI B16.5 Socket Welding Flange
