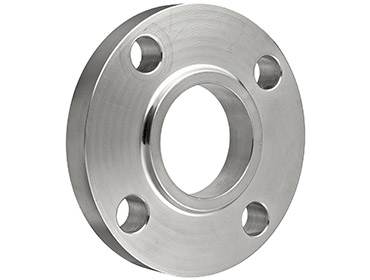

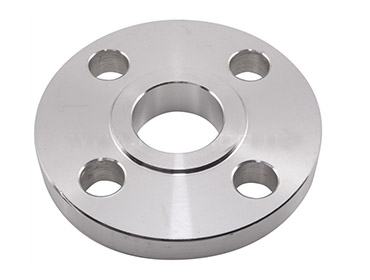

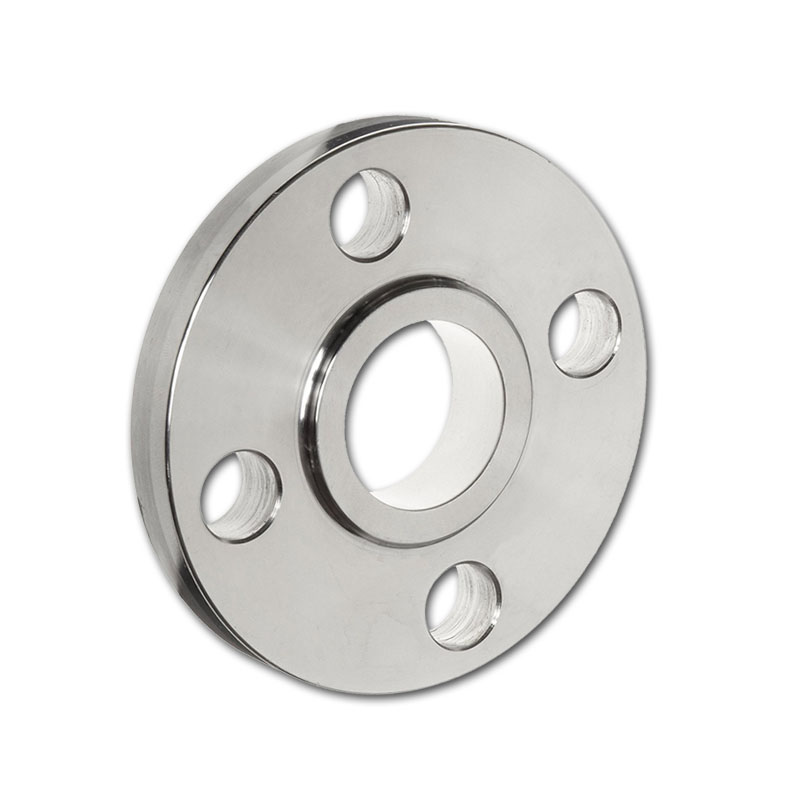

ANSI Slip on flange is also called the lap welding flange, which connects the pipe by the lap welding, people will insert the pipe into the hole to a proper position, then take welding. It is easy to installed, the price is very cheap, so it is wildly used in many industries.
Production Size: DN10-DN2000
Pressure Range: PN2.5, PN6, PN10, PN16, PN25, PN40
Production Standard: BS, JIS, GOST, ANSI, DIN, GB
A105, 20#, Q235, 16Mn, A350 LF1, LF2, CL1/CL2, LF3 CL1/CL2, A694
F42, F46, F48, F50, F52, F56, F60, F65, F70; A182
F304, 304L, F316, F316L, 321, 18-8, A182F1, F5a, F9, F11, F12, F22, F91, A182 F12, F11, 16MnR
