Vertiacl Check Valve
Quantity
Inquiry

Vertiacl Check Valve

ANSI stainless steel Vertiacl Check Valve is a valve which automatically opens and closes valve disc depending on the flow of the medium itself, and it is also used to prevent medium from flowing backwards. It is also called single direction valve, no-return valve and back pressure valve. It is a kind of automatic valve, main function of check valve is to prevent the reverse flow of the medium, prevent the reversal of the pump and drive motor, and the discharge of the container medium.

  • Vertiacl Check Valve
  • Vertiacl Check Valve

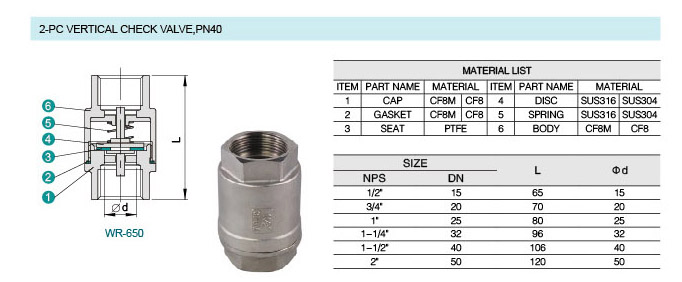

  • ANSI Stainless Steel Vertiacl Check Valve Standard:

Production Size: 1"~2". DN15~DN50

Pressure: PN40.

Design Standard: ANSI B16.34

Testing Standard: API 598

  • ANSI Stainless Steel Screw End Swing Check Valve Material of Parts:

Body: CF3, CF3M, CF8, CF8M.

Bonnet: CF3, CF3M, CF8, CF8M.

Gasket: SS304, SS316.

Seat: PTFE.

Disc: CF3, CF3M, CF8, CF8M.

Spring: CF3, CF3M, CF8, CF8M.

  • Vertiacl Check Valve
