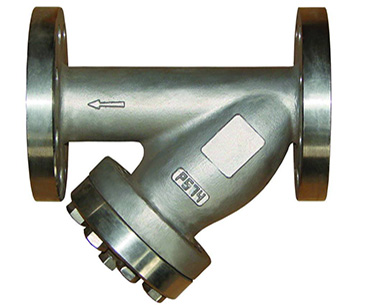

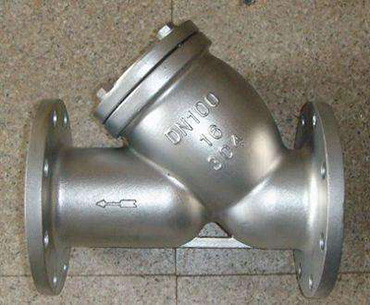

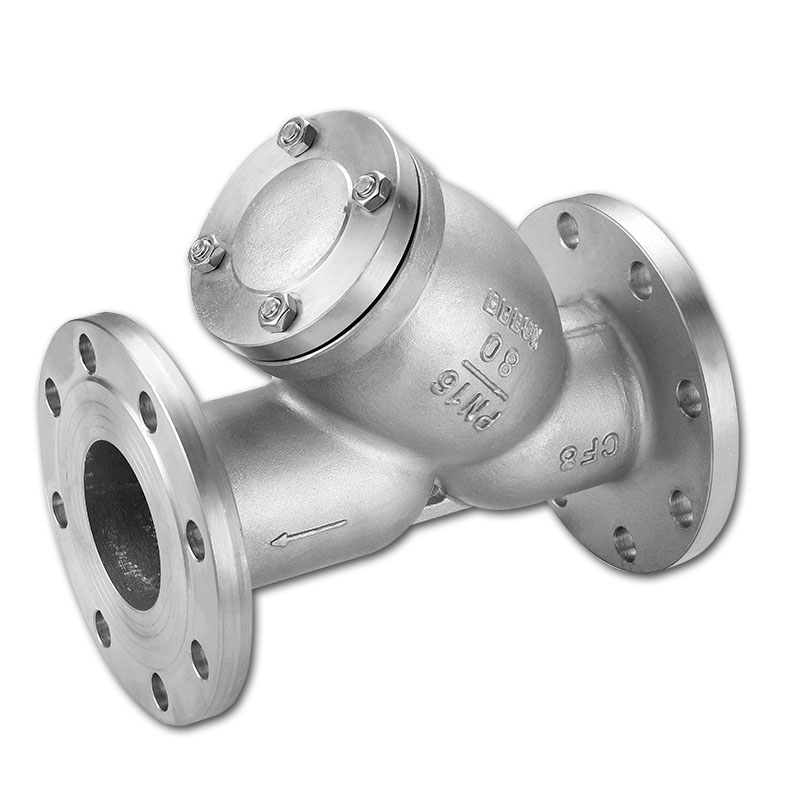

The structure of ANSI Flange End Strainer is advanced, the resistance is small, it is convenient to clean the sewage. The medium are suitable for water, oil, steam. It generally installed in front end of the Pressure relief valve and Pressure reduce valve, cleans the sewage of in the medium and protects the normal work of valves and other devices. When people clean the strainer, people just take out the screen, after cleaning the screen, reinstall into the body, it is very convenient to fix and maintain.

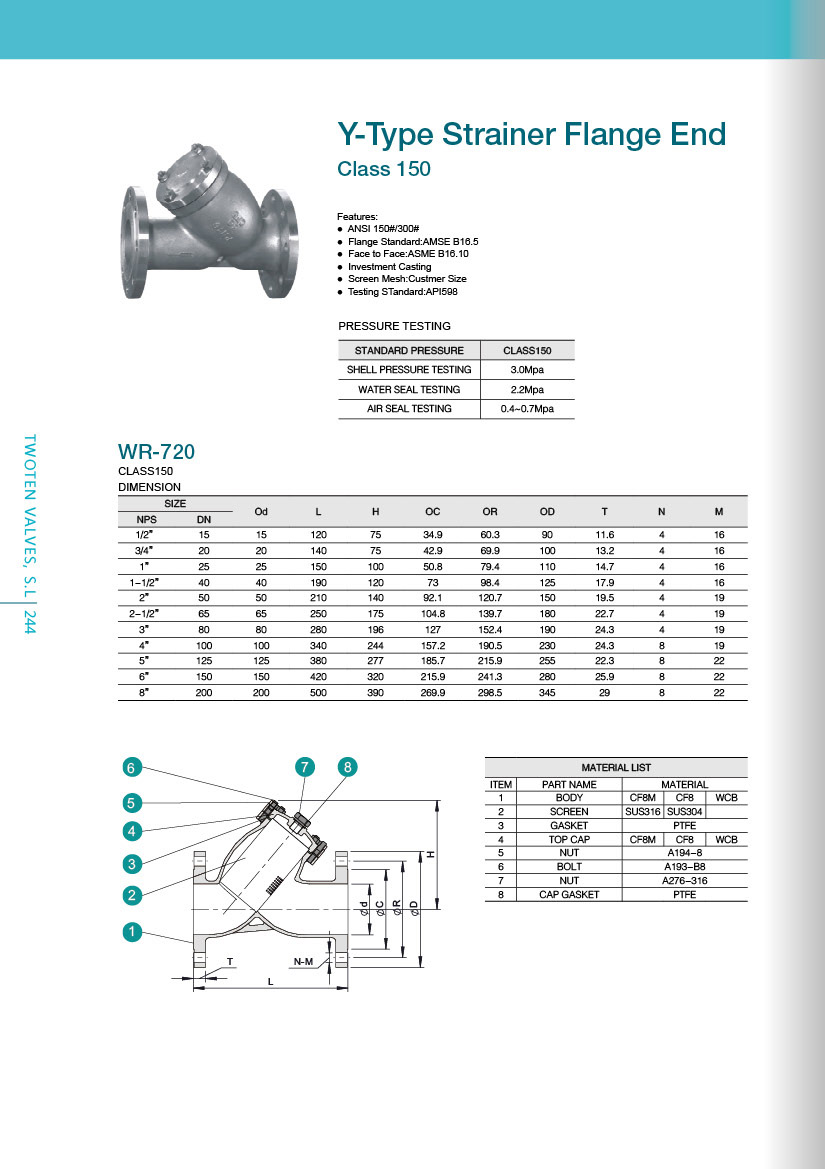

Production Size: 1/2"-8" DN15-DN200mm.
Pressure: 125LB, 150LB.
Design Standard: ANSI
Face to Face: ASME B16.10
Flange Standard: AMSE B16.5
Testing Standard: API 598
Body: CF8, CF8M, WCB .
Bonnet: CF8, CF8M, WCB.
Screen: 2Cr13/SS304/SS316.
Gasket: PTFE.
Nut: A194-8.
Cap Gasket: PTFE.
