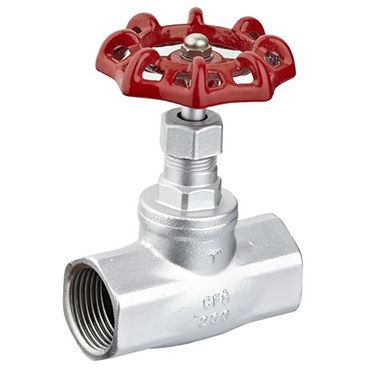

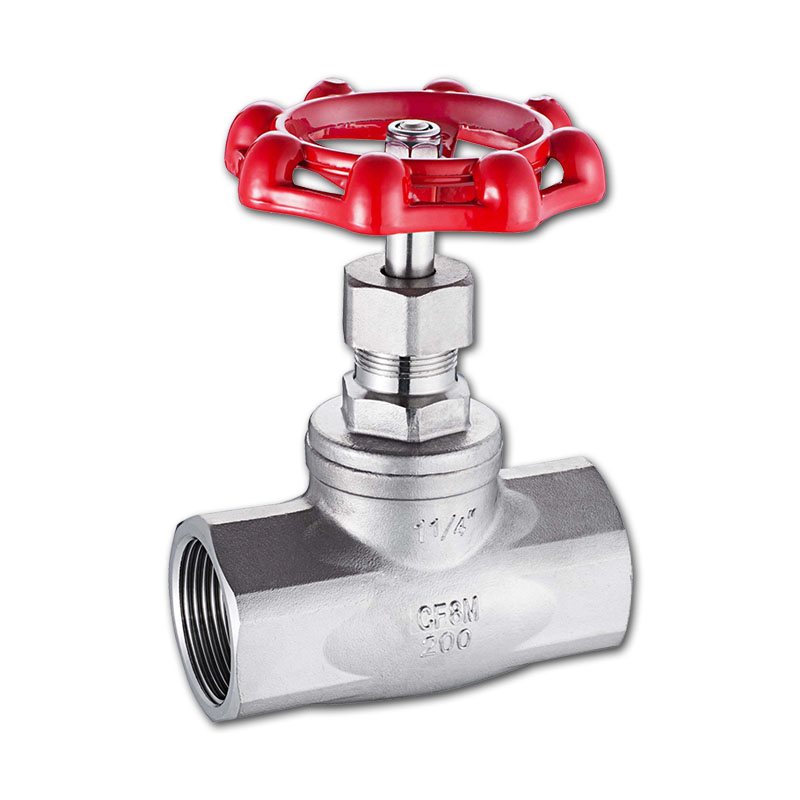

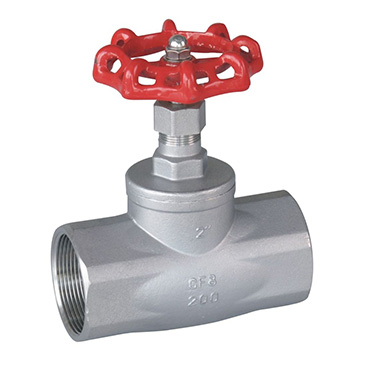

Globe Valve Screw End can be used to control the flow of various types of fluid, such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive medium.
The opening and closing part of Globe valve is a plug disc, and the valve flap of globe valve moves along the center line of the valve seat in a straight line.
Production Size: 1/2"~2".DN15~DN50.
Pressure: 1000PSI.
Design Standard: Globe Valve Screw End Standard
Face to Face: ASME B16.34
Flange Standard: ASME B16.5
Testing Standard: API 598.

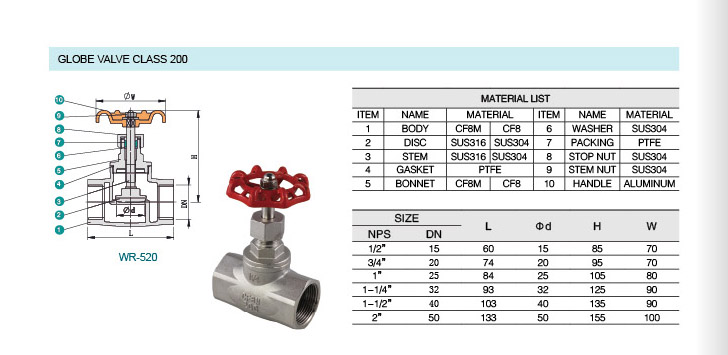

Body: CF3, CF3M, CF8, CF8M.
Bonnet: CF3, CF3M, CF8, CF8M.
Stem: 2Cr13, SS304, SS316.
Stem Nut: SUS304.
Disc: CF3, CF3M, CF8, CF8M.
Seat: CF3, CF3M, CF8, CF8M.
Hand wheel: Aluminum.
Packing: PTFE.
