- Gate Valve Screw End
Quantity
Gate Valve Flange End

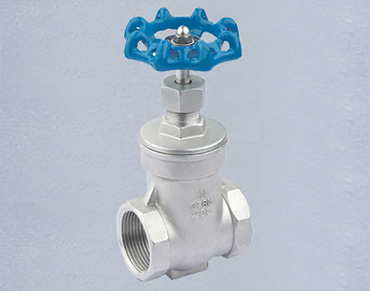

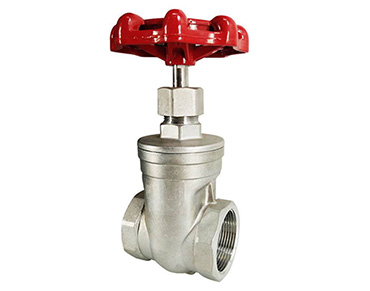

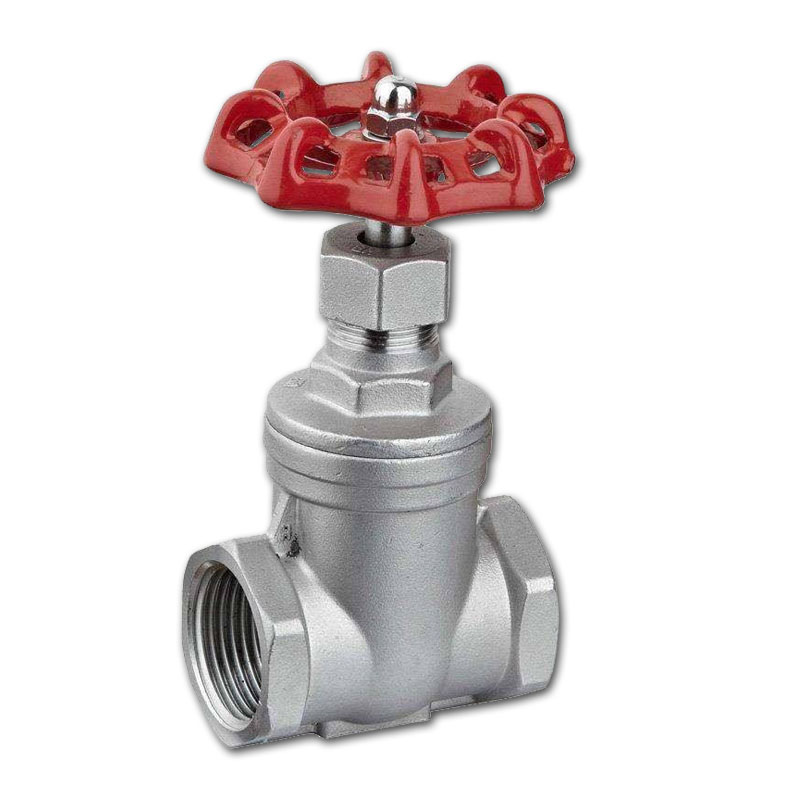

ANSI Stainless Steel Screw End Gate Valve is widely used in petroleum, chemical, natural gas, electric power, metallurgy, pharmacy, building, water supply and other industries for three performances: availability, reliability and stability. All users rate our quality high.
This product is produced and designed according API standard with reliable sealing.

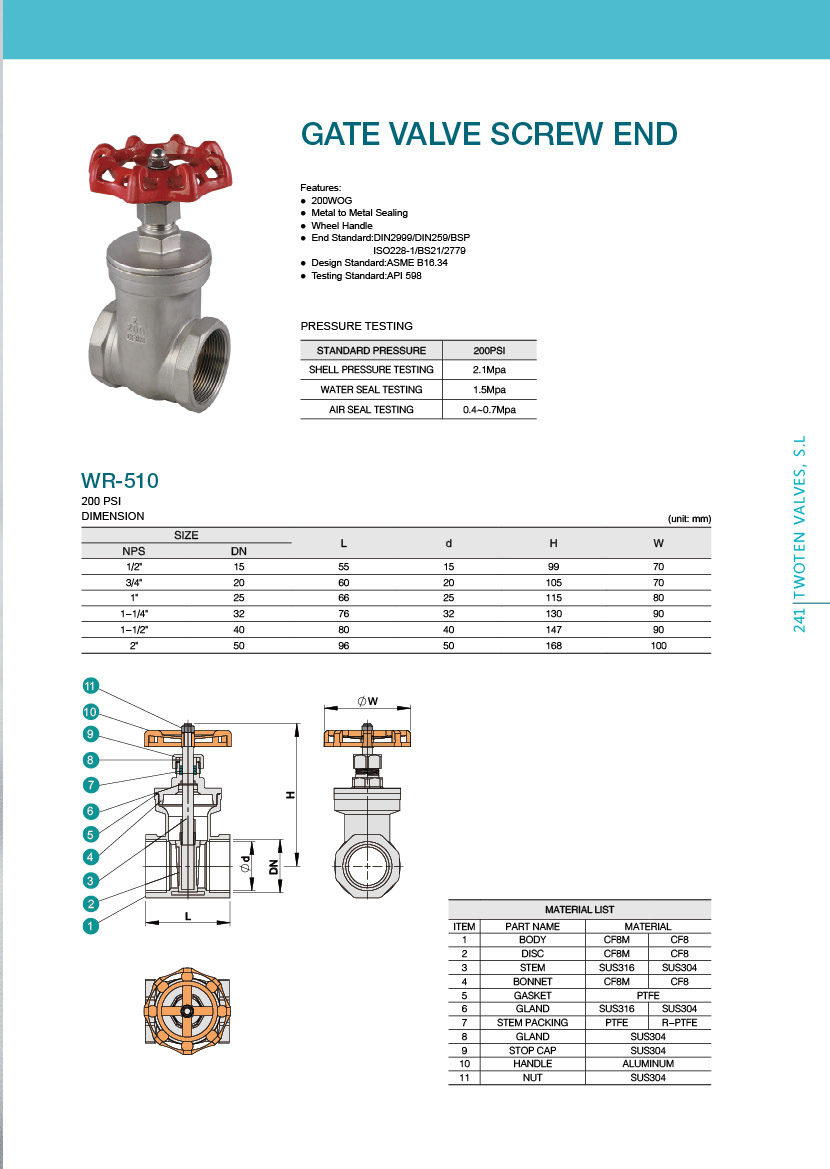

- ANSI Stainless Steel Screw End Gate Valve Standard:
Production Size: 1/2"~2".DN15~50.
Pressure: 200PSI
Design Standard: ASME B16.34
Screw Standard: DIN2999/DIN 259/BSP/ BS21
Testing Standard: API 598
- ANSI Stainless Steel Screw End Gate Valve Main Material of Parts:
Body: CF3, CF3M, CF8, CF8M.
Bonnet: CF3, CF3M, CF8, CF8M.
Stem: 2Cr13/SS304/SS316.
Stem Nut: SUS304
Disc: CF3, CF3M, CF8, CF8M.
Packing: PTFE.
Seat: CF3, CF3M, CF8, CF8M.
Hand wheel: Aluminum.
