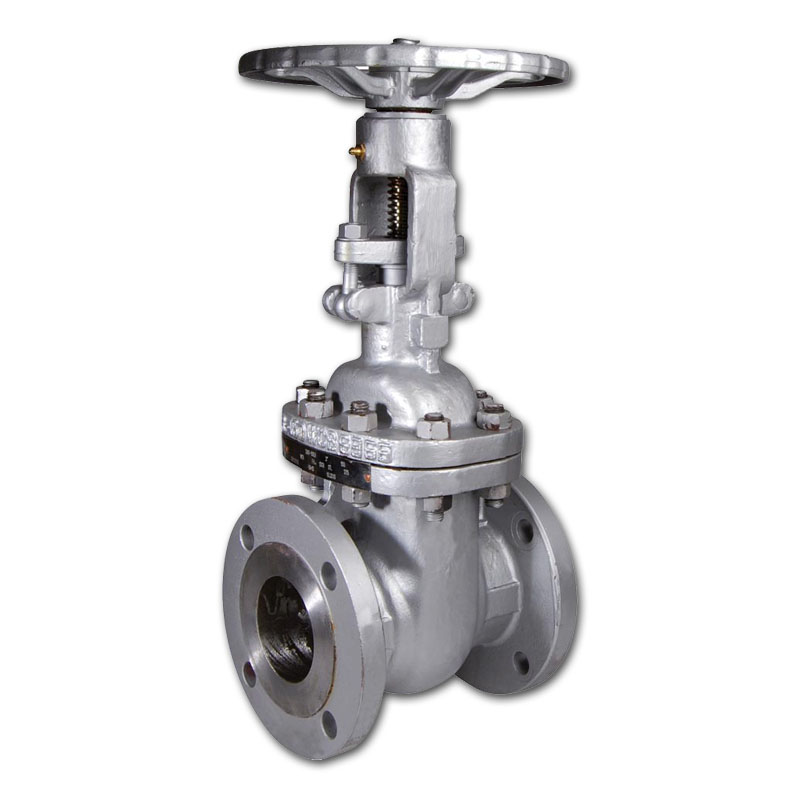

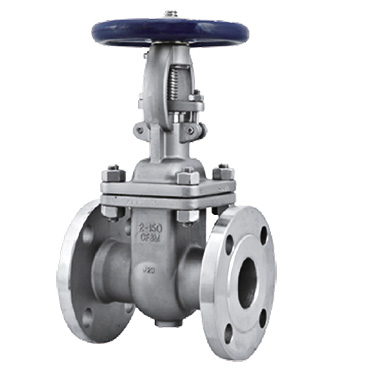

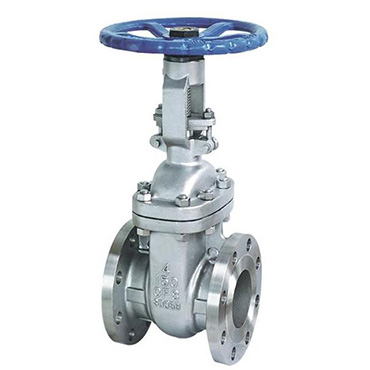

Gate Valve Flange End
ANSI Stainless Steel Gate Valve is widely used in petroleum, chemical, natural gas, electric power, metallurgy , pharmacy, building, water supply and other industries for three performances: availability, reliability and stability. All users rate our quality high.
This product is produced and designed according API standard with reliable sealing.

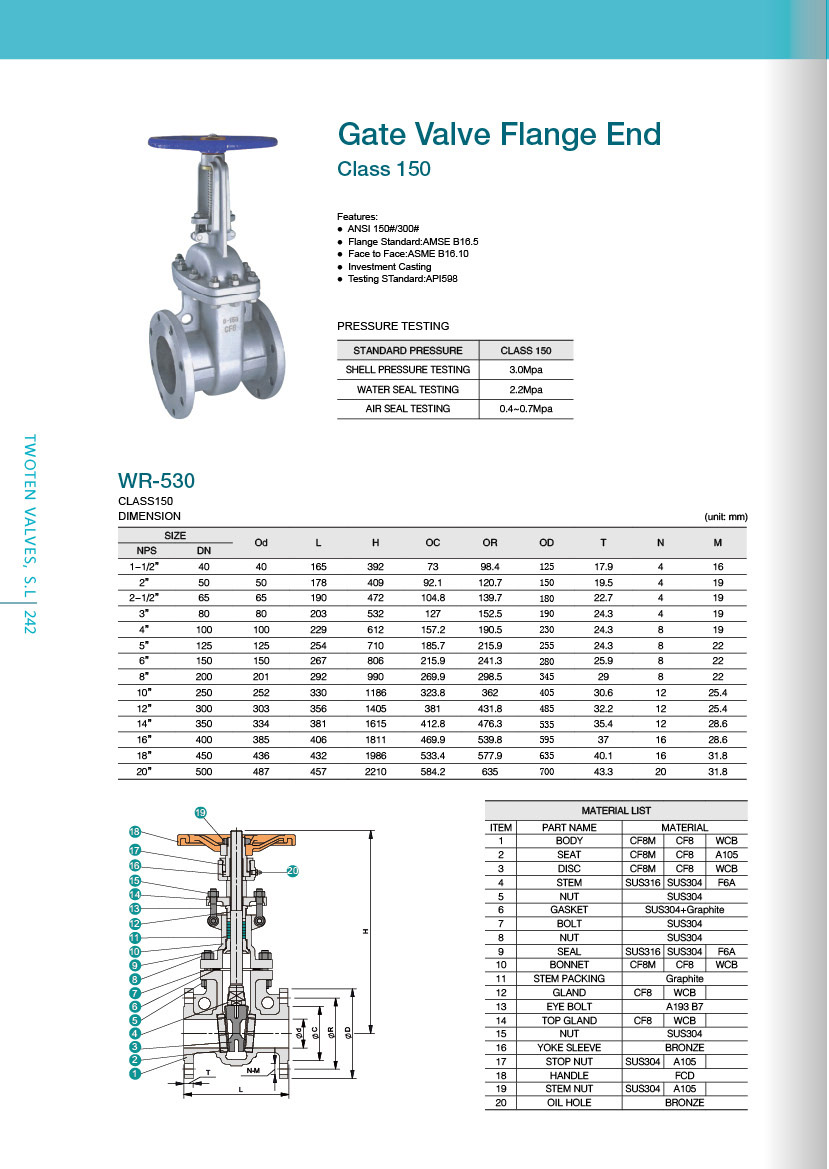

- ANSI Stainless Steel Gate Valve Standard:
Production Size: 1/2"~40". DN15~DN1000.
Pressure: 150LB, 300LB, 600LB, 900LB.
Design Standard: API600, API6D
Face to Face: ASME B16.34
Flange Standard: ASME B16.10
Testing Standard: ASME B16.25
- ANSI Stainless Steel Gate Valve Main Material of Parts:
Body: CF3, CF3M, CF8, CF8M.
Bonnet: CF3, CF3M, CF8, CF8M.
Stem: 2Cr13/SS304/SS316/carbon steel.
Stem Nut: brass
Disc: CF3, CF3M, CF8, CF8M.
Packing: PTFE.
Seat: CF3, CF3M, CF8, CF8M.
Hand wheel: ASTM A536 65-45-12.
