Y Strainer Screw End
Quantity
Inquiry

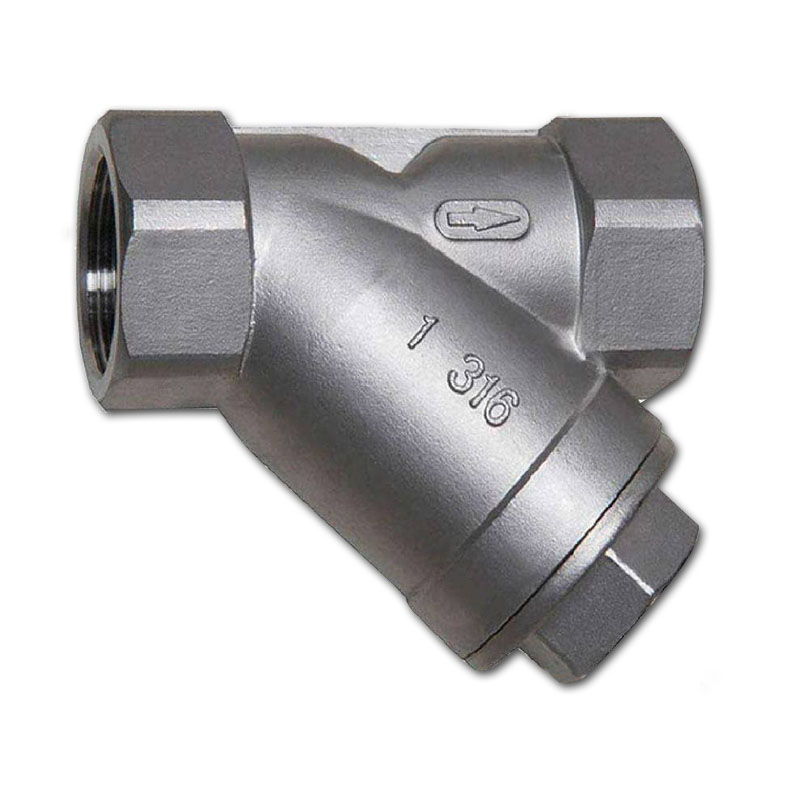

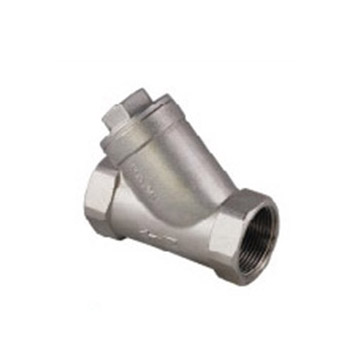

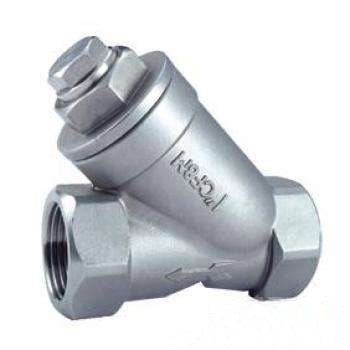

Y Strainer Screw End

The structure of ANSI Screw End Strainer is advanced, the resistance is small, it is convenient to clean the sewage. The medium are suitable for water, oil, team. It generally installed in front end of the Pressure relief valve and Pressure reduce valve, cleans the sewage of in the medium and protects the normal work of valves and other devices. When people clean the strainer, people just take out the screen, after cleaning the screen, reinstall into the body, it is very convenient to fix and maintain.

  • Y Strainer Screw End
  • Y Strainer Screw End

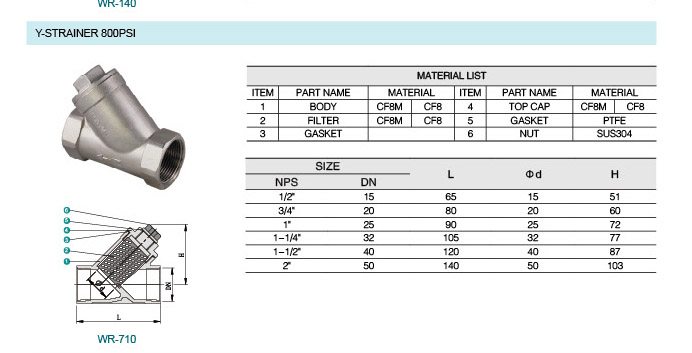

  • Screw End Strainer Range:

Production Size: 1/2"-2" DN15-DN50mm

Pressure Range: 125LB, 150LB

  • Screw End Strainer Standard:

Design Standard: ANSI

Face to Face: ASME B16.10

Testing Standard: API 598

  • Screw End Strainer Main Material of Parts:

Body: CF8, CF8M, WCB

Bonnet: CF8, CF8M, WCB

Screen: SS304/SS316

Gasket: PTFE

Nut: SUS304

  • Y Strainer Screw End
