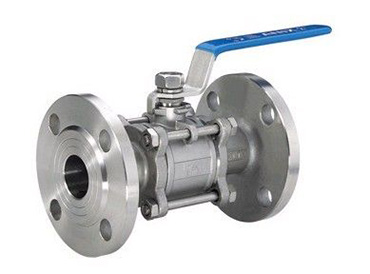

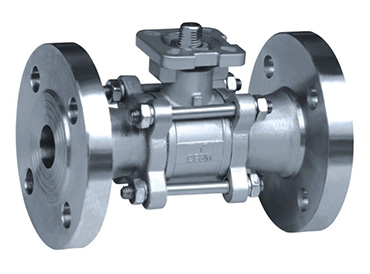

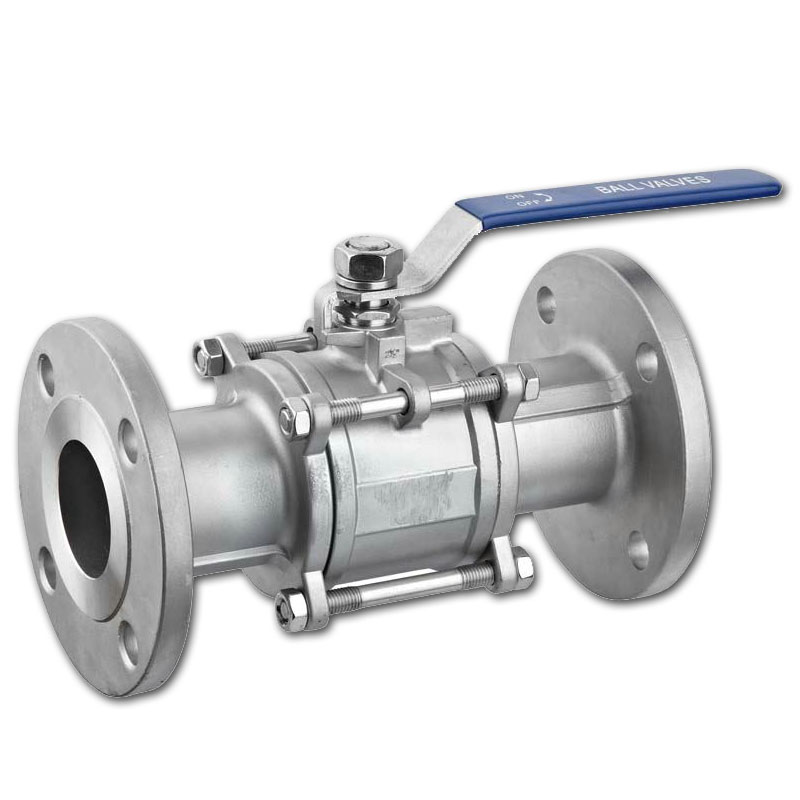

DIN Ball Valve 3PC

DIN 3PC Ball Valve is widely used in petroleum refining, long-distance pipeline, chemical industry, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries. It, the opening and closing (ball) is driven by the stem and revolves around the axis. The sealing performance is good, the seal of the hard sealed is made by artificial grinding until the valve core is in perfect agreement with the seal ring. So its sealing performance is reliable, the switch is light.

  • DIN Ball Valve 3PC
  • DIN Ball Valve 3PC

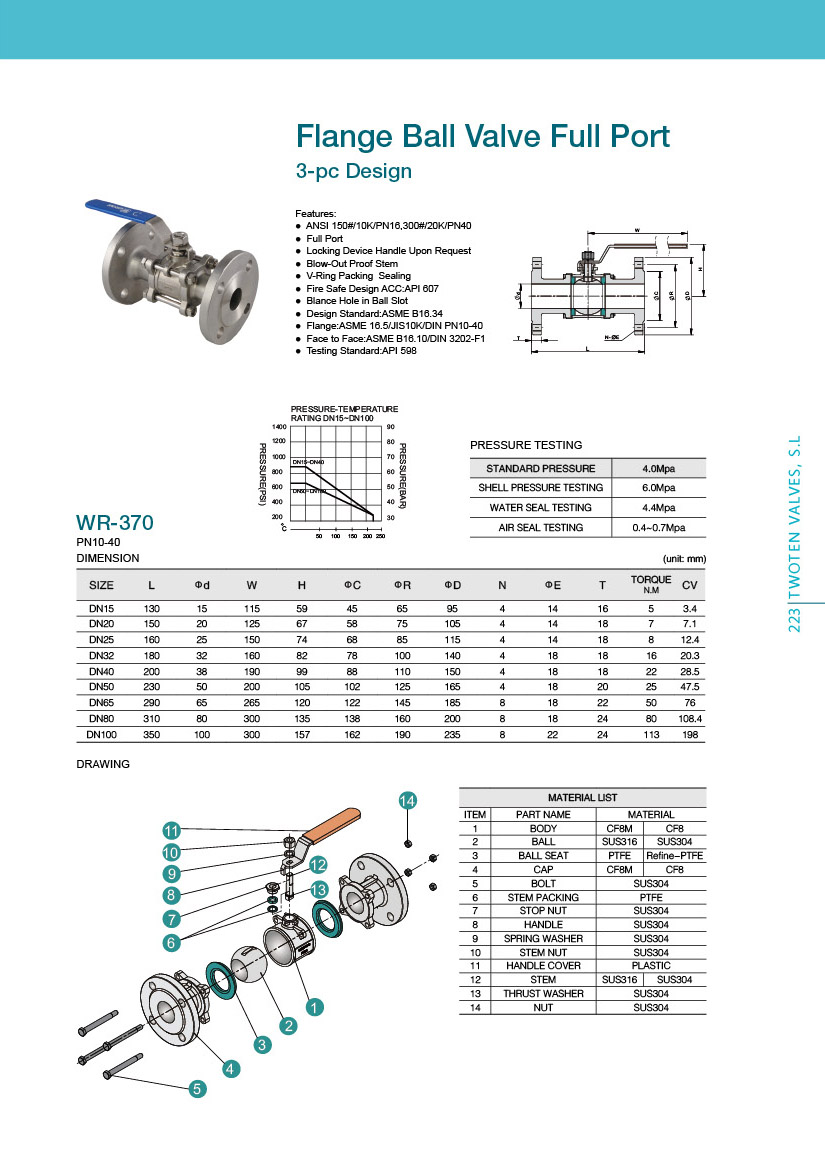

  • DIN 3PC Ball Valve Range:

Production Size: 1/4"~4".DN15~DN100.

Pressure: PN10-40.

  • DIN 3PC Ball Valve Standard:

Design Standard: ANSI B16.34

Face to Face: DIN PN10-40

Flange Standard: DIN 3202 F1

Testing Standard: API 598

  • DIN 3PC Ball Valve Main Material of Parts:

Body: CF3, CF3M, CF8, CF8M, WCB.

Stem: 2Cr13/SS304/SS316.

Ball: CF3, CF3M, CF8, CF8M.

Packing: PTFE.

Seat: PTFE, RPTFE.

Washer: SUS304.

Handle: SUS304.

  • DIN Ball Valve 3PC
