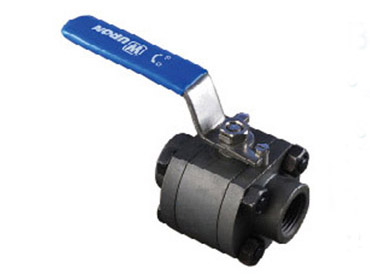

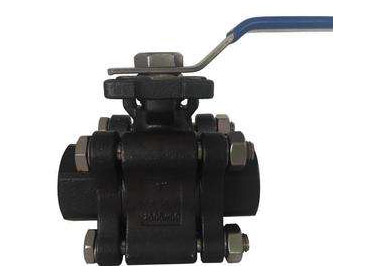

Ball Valve Full Port 3PC

3PC Ful Port Ball ball valve is widely used in petroleum refining, long-distance pipeline, chemical industry, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries. It, the opening and closing (ball) is driven by the stem and revolves around the axis. The sealing performance is good, the seal of the hard sealed is made by artificial grinding until the valve core is in perfect agreement with the seal ring. So its sealing performance is reliable, the switch is light.

  • Ball Valve Full Port 3PC
  • Ball Valve Full Port 3PC

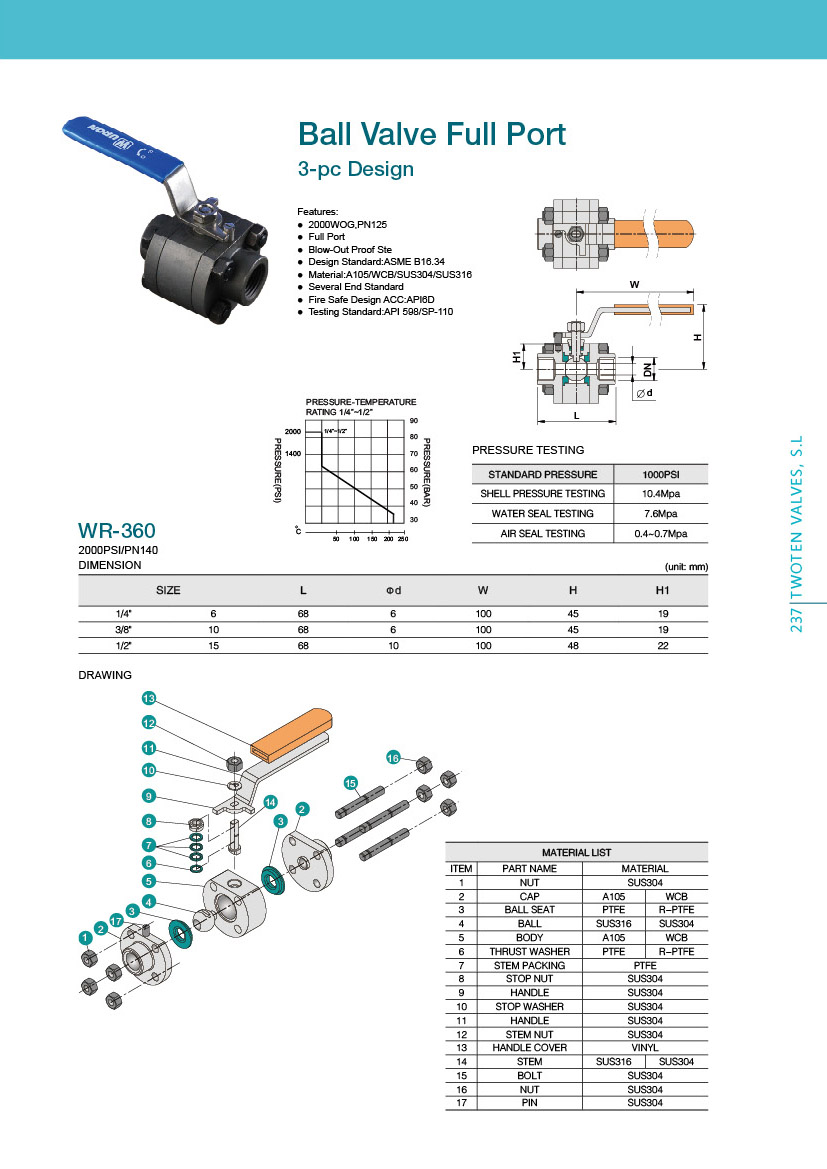

  • 3PC Ful Port Ball Ball Valve Range:

Production Size: 1/4"~1/2".

Pressure: 2000PSI/PN140.

  • 3PC Ful Port Ball Ball Valve Standard:

Design Standard: ANSI B16.34 and API 6D

Face to Face: ASME B16.10

Testing Standard: API 598

  • 3PC Ful Port Ball Ball Valve Main Material of Parts:

Body: A105, WCB.

Stem: 2Cr13/SS304/SS316.

Ball: CF3,CF3M,CF8,CF8M.

Packing: PTFE.

Seat: PTFE, RPTFE.

Washer: SUS304.

Handle: SUS304.

  • Ball Valve Full Port 3PC
