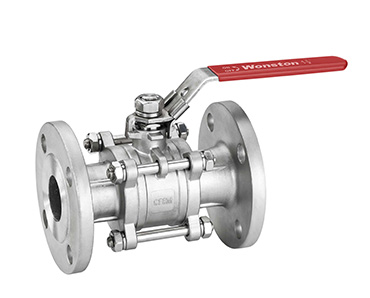

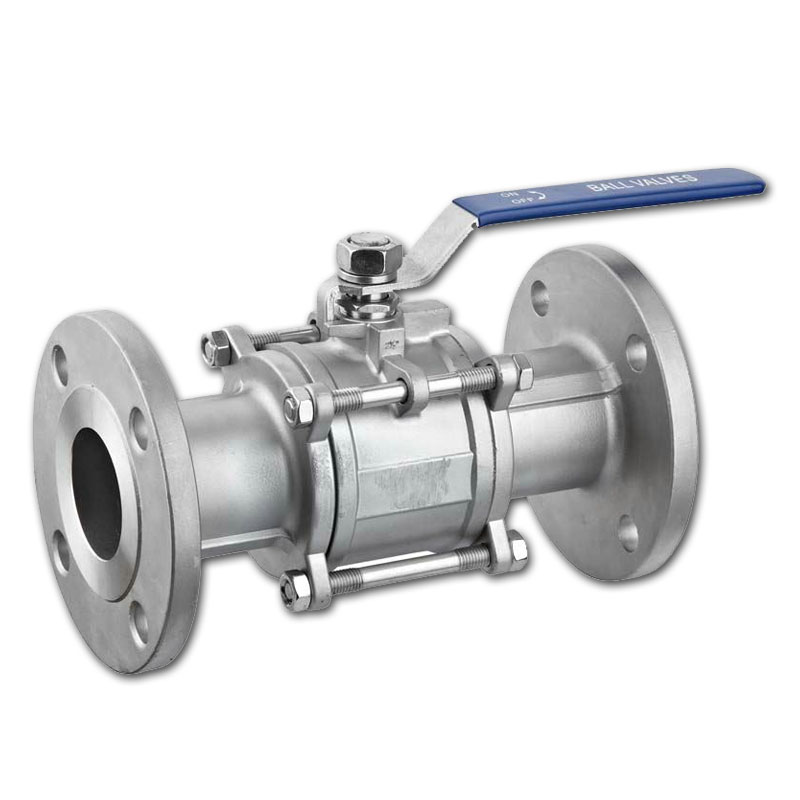

ANSI Ball Valve 3PC
Quantity
Inquiry

ANSI Ball Valve 3PC

ANSI 3PC ball valve is widely used in petroleum refining, long-distance pipeline, chemical industry, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries. It, the opening and closing (ball) is driven by the stem and revolves around the axis. The sealing performance is good, the seal of the hard sealed is made by artificial grinding until the valve core is in perfect agreement with the seal ring. So its sealing performance is reliable, the switch is light.

  • ANSI Ball Valve 3PC
  • ANSI Ball Valve 3PC
  • ANSI 3PC Ball Valve Range:

Production Size: 1/2"~4". DN15~DN100.

Pressure: PN10-40.

  • ANSI 3PC Ball Valve Standard:

Design Standard: ANSI B16.34

Face to Face: ASME B16.10/DIN3201 F1

Testing Standard: API 59

  • ANSI 3PC Ball Valve Main Material of Parts:

Body: CF3, CF3M, CF8, CF8M, WCB.

Stem: 2Cr13/SS304/SS316.

Ball: CF3, CF3M, CF8, CF8M.

Packing: PTFE.

Seat: PTFE, RPTFE.

Washer: SUS304.

Handle: SUS304.

  • ANSI Ball Valve 3PC
