ANSI Mounting Pad Flange End 2PC Ball Valve
Quantity
Inquiry

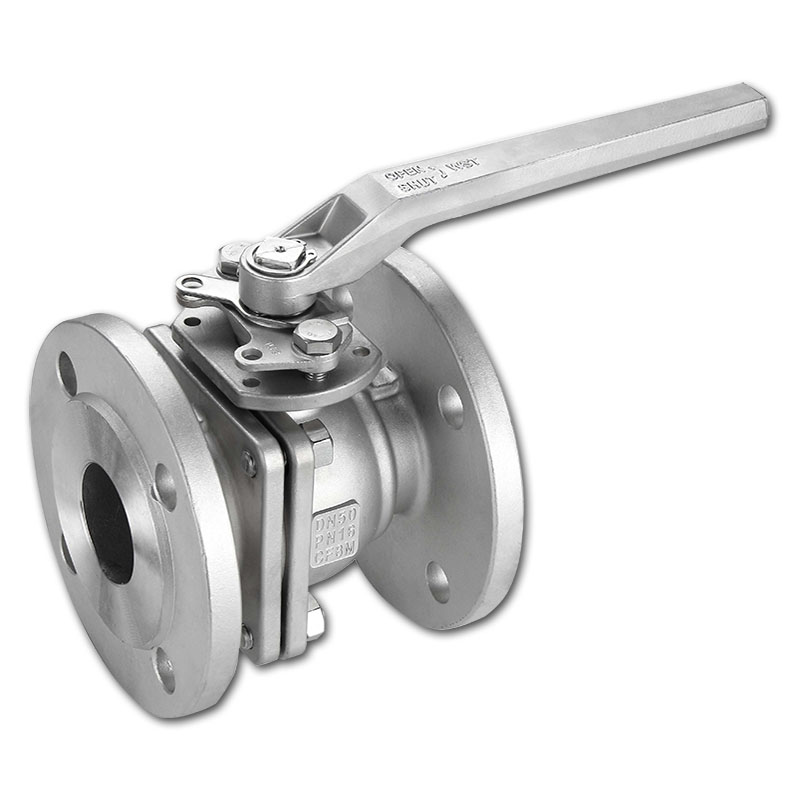

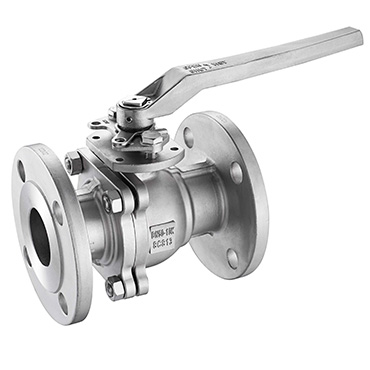

ANSI Mounting Pad Flange End 2PC Ball Valve

ANSI Mounting Pad Flange End 2PC Ball Valve is widely used in petroleum refining, long-distance pipeline, chemical industry, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries. It, the opening and closing (ball) is driven by the stem and revolves around the axis. The sealing performance is good, the seal of the hard sealed is made by artificial grinding until the valve core is in perfect agreement with the seal ring. So its sealing performance is reliable, the switch is light.

  • ANSI Mounting Pad Flange End 2PC Ball Valve
  • ANSI Mounting Pad Flange End 2PC Ball Valve
  • ANSI Mounting Pad Flange End 2PC Ball Valve Range:

Production Size: 1/2"~4". DN15~DN100.

Pressure: 150LB/10K.

  • ANSI Mounting Pad Flange End 2PC Ball Valve Standard:

Design Standard: ANSI B16.34

Face to Face: ASME B16.10

Flange Standard: ASME B16.5/JIS 10K

Testing Standard: API 598

  • ANSI Mounting Pad Flange End 2PC Ball Valve Main Material of Parts:

Body: CF3, CF3M, CF8, CF8M, WCB.

Stem: 2Cr13/SS304/SS316.

Ball: CF3, CF3M, CF8, CF8M.

Gasket: PTFE.

Seat: PTFE, RPTFE.

Washer: SUS304.

Handle: SUS304.

  • ANSI Mounting Pad Flange End 2PC Ball Valve
