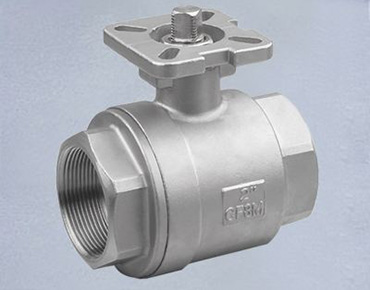

ANSI 2000WOG ISO Mounting Pad Ball 2PC Valve
Quantity
Inquiry

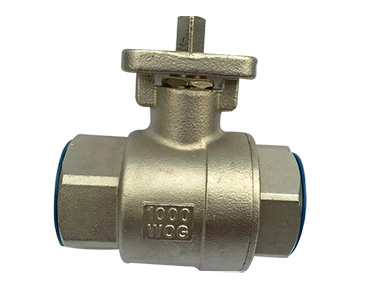

ANSI 1000WOG Thread End ISO Direct Mounting Pad 2PC Ball Valve

ANSI 2000WOG ISO Mounting Pad Ball 2PC Valve is widely used in petroleum refining, long-distance pipeline, chemical industry, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries. It, the opening and closing (ball) is driven by the stem and revolves around the axis. The sealing performance is good, the seal of the hard sealed is made by artificial grinding until the valve core is in perfect agreement with the seal ring. So its sealing performance is reliable, the switch is light.

  • ANSI 2000WOG ISO Mounting Pad Ball 2PC Valve
  • ANSI 2000WOG ISO Mounting Pad Ball 2PC Valve
  • ANSI 2000WOG ISO Mounting Pad Ball 2PC Valve Range:

Production Size: 1/2"~2". DN15~DN50.

Pressure: 2000PSI/PN140.

  • ANSI 2000WOG ISO Mounting Pad Ball 2PC Valve Standard:

Design Standard: ANSI B16.34

Face to Face: ASME B16.10

Testing Standard: API 598

  • ANSI 2000WOG ISO Mounting Pad Ball 2PC Valve Main Material of Parts:

Body: CF3, CF3M, CF8, CF8M, WCB.

Stem: 2Cr13/SS304/SS316.

Ball: CF3, CF3M, CF8, CF8M.

Packing: PTFE.

Seat: PTFE, RPTFE.

Washer: SUS304.

Handle: SUS304.

  • ANSI 2000WOG ISO Mounting Pad Ball 2PC Valve
