DIN Wafer Flange End 1PC
Quantity
Inquiry

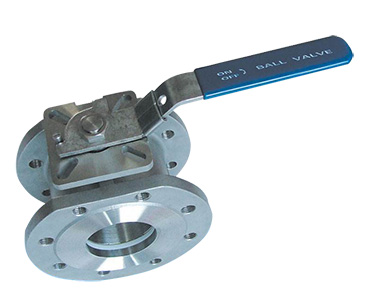

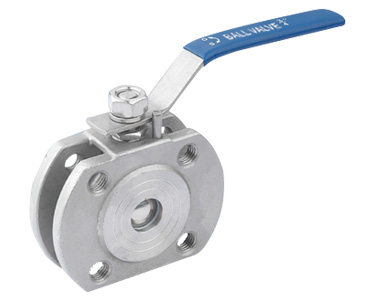

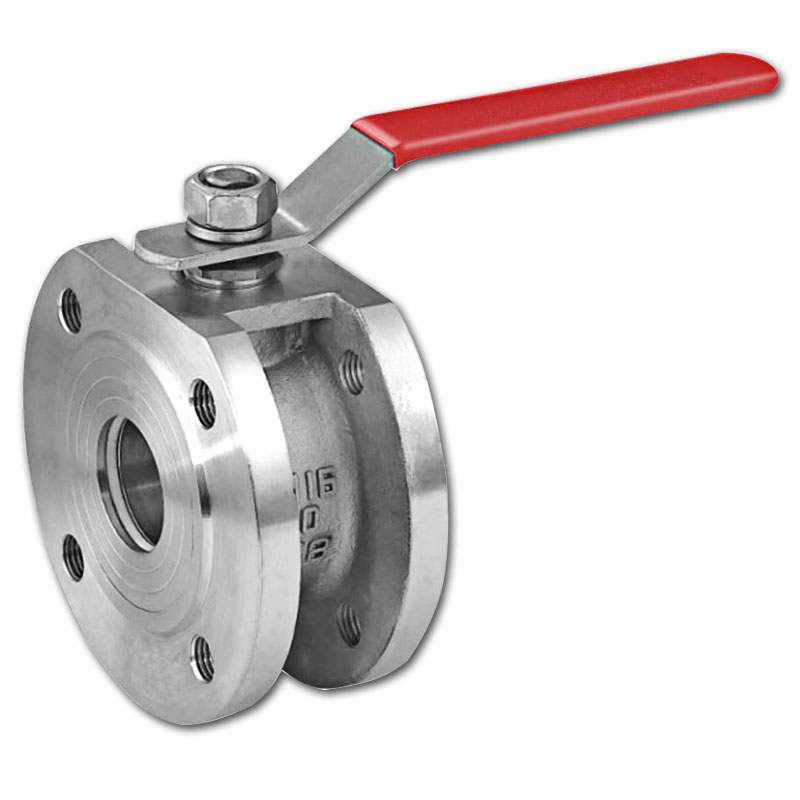

DIN Wafer Flange End 1PC

DIN Wafer ball valve is widely used in petroleum refining, long-distance pipeline, chemical industry, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries. It, the opening and closing (ball) is driven by the stem and revolves around the axis. The sealing performance is good, the seal of the hard sealed is made by artificial grinding until the valve core is in perfect agreement with the seal ring. So its sealing performance is reliable, the switch is light.

  • DIN Wafer Flange End 1PC
  • DIN Wafer Flange End 1PC
  • DIN Wafer Ball Valve Range:

Production Size: 1/2"~10". DN15~DN250.

Pressure: 150LB, 300LB, 600LB, 900LB.

  • DIN Wafer Ball Valve Standard:

Design Standard: ANSI B16.34

Face to Face: ASME B16.10

Flange Standard: ASME B16.10

Testing Standard: API 598

  • DIN Wafer Ball Valve Main Material of Parts:

Body: CF8M, CF8.

Stem: SS304, SUS316.

Ball: CF3, CF3M, CF8, CF8M.

Packing: PTFE, R-PTFE.

Seat: PTFE, RPTFE.

Belleville Washer: SUS304.

Handle: SUS 304.

  • DIN Wafer Flange End 1PC
