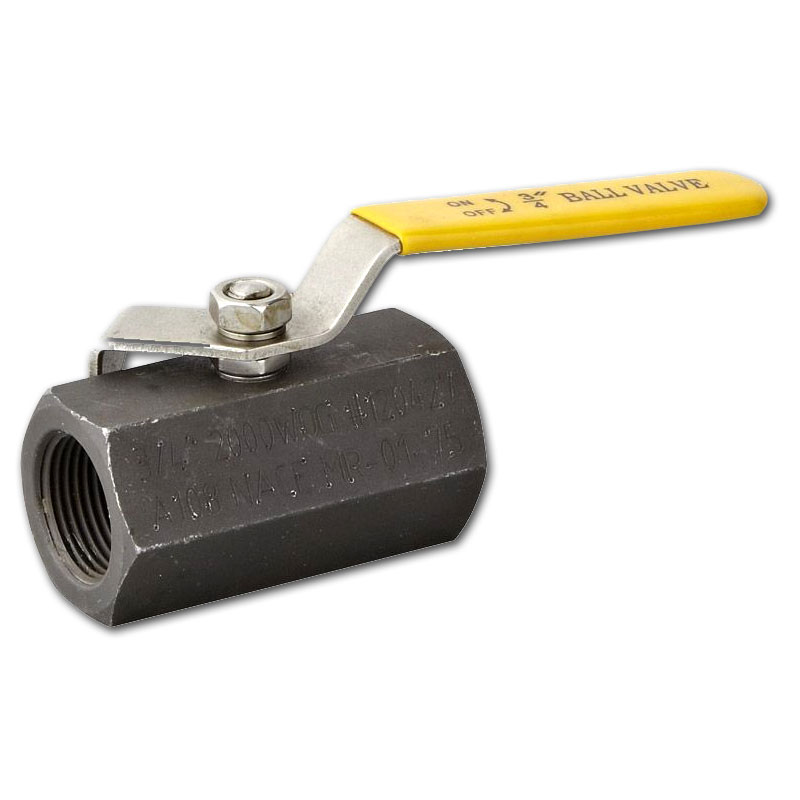

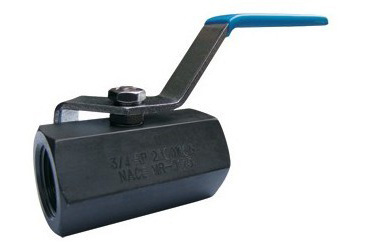

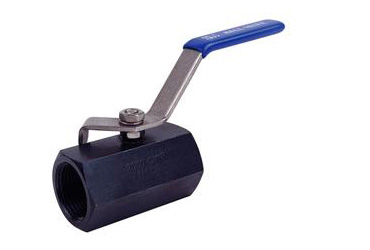

Ball Valve 1PC A105

Ball Valve 1PC A105

1pc Ball valve is widely used in petroleum refining, long-distance pipeline, chemical industry, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries. It, the opening and closing (ball) is driven by the stem and revolves around the axis. The sealing performance is good, the seal of the hard sealed is made by artificial grinding until the valve core is in perfect agreement with the seal ring. So its sealing performance is reliable, the switch is light.

  • Ball Valve 1PC A105
  • Ball Valve 1PC A105
  • 1PC Ball Valve Range:

Production Size: DN15~DN100"

Pressure: 1000PSI.

  • 1PC Ball Valve Standard:

Design Standard: DIN

Face to Face: DIN

Flange Standard: DIN

Testing Standard: API 598

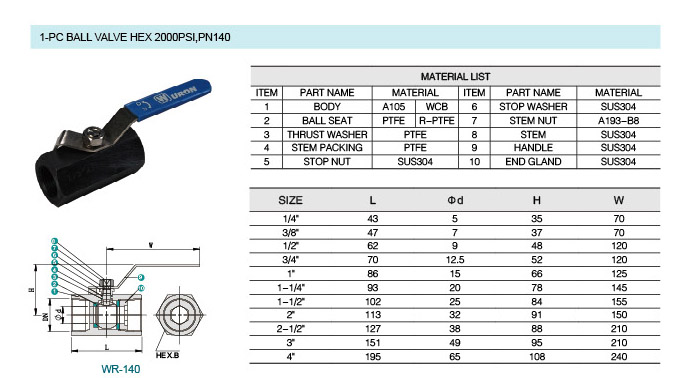

  • 1PC Ball Valve Main Material of Parts:

Body: CF3, CF3M, CF8, CF8M.

Bonnet: CF3, CF3M, CF8, CF8M.

Stem: 2Cr13/SS304/SS316/carbon steel.

Ball: CF3, CF3M, CF8, CF8M.

Packing: PTFE.


Washer: PTFE.

Handle: ASTM A536 65-45-12.

  • ANSI Flange End ISO Direct Mounting Pad Ball Valve
