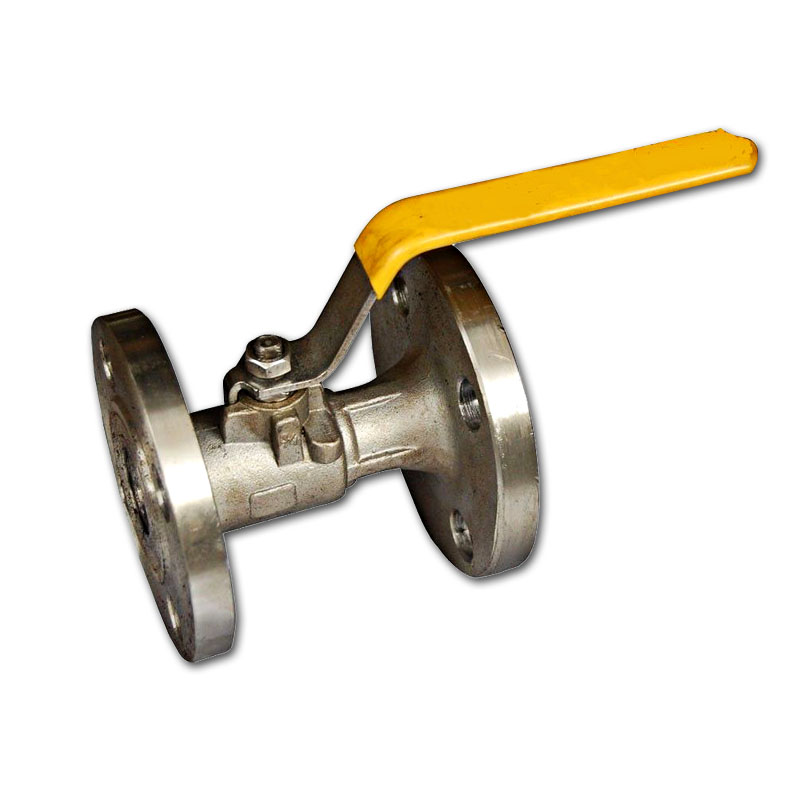

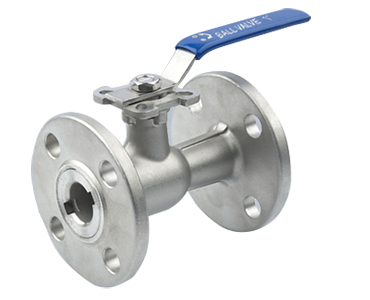

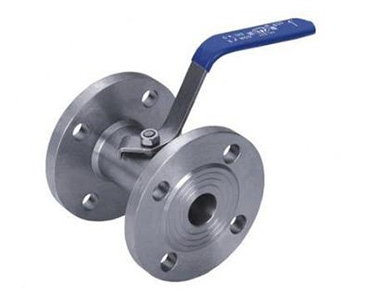

ANSI Flange End ISO Direct Mounting Pad Ball Valve
Quantity

ANSI Flange End ISO Direct Mounting Pad Ball Valve

ASNI ISO Derect Mounting Pad ball valve is widely used in petroleum refining, long-distance pipeline, chemical industry, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other industries. It, the opening and closing (ball) is driven by the stem and revolves around the axis. The sealing performance is good, the seal of the hard sealed is made by artificial grinding until the valve core is in perfect agreement with the seal ring. So its sealing performance is reliable, the switch is light.

  • ANSI Flange End ISO Direct Mounting Pad Ball Valve
  • ANSI Flange End ISO Direct Mounting Pad Ball Valve

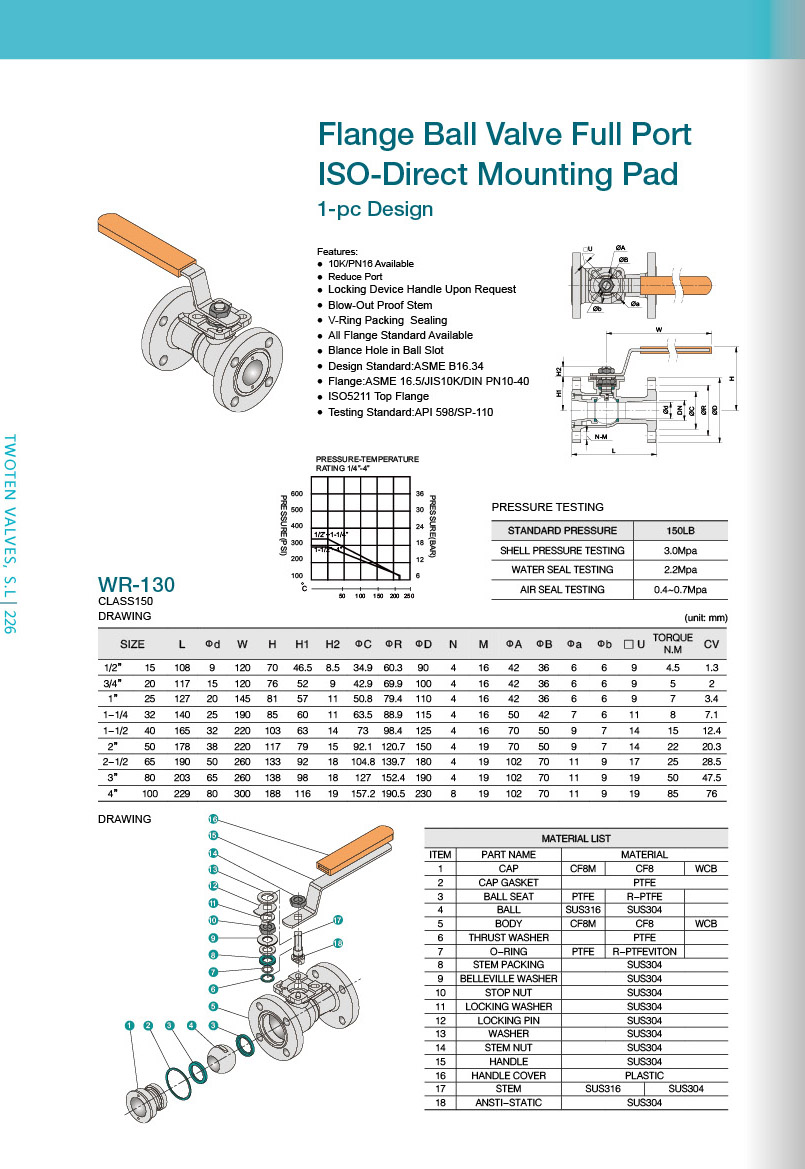

  • ASNI ISO Derect Mounting Pad Ball Valve Range:

Production Size: 1/2"~4". DN15~DN100

Pressure:150LB.

  • ASNI ISO Derect Mounting Pad Ball Valve Standard:

Design Standard: ANSI B16.34

Face to Face: ASME B16.10

Flange Standard: ASME B16.5/JIS 10K/DIN PN10-40

Testing Standard: API 598

  • ASNI ISO Derect Mounting Pad Ball Valve Main Material of Parts:

Body: CF3, CF3M, CF8, CF8M, WCB.

Bonnet: CF3, CF3M, CF8, CF8M, WCB.

Stem: 2Cr13/SS304/SS316/carbon steel.

Ball: CF3, CF3M, CF8, CF8M.

Packing: PTFE.

Seat: PTFE, RPTFE.

Washer: SUS304.

Handle: SUS304.

  • ANSI Flange End ISO Direct Mounting Pad Ball Valve
